STGIB15CH60TS-L - STMicroelectronics

Description: Intelligent Power Module 450Vdc 2kW 15A STMicroelectronics STGIB15CH60TS-L, Smart Power Module, 20 A max, 600 V, 26-Pin SDIP2B

Download STGIB15CH60TS-L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

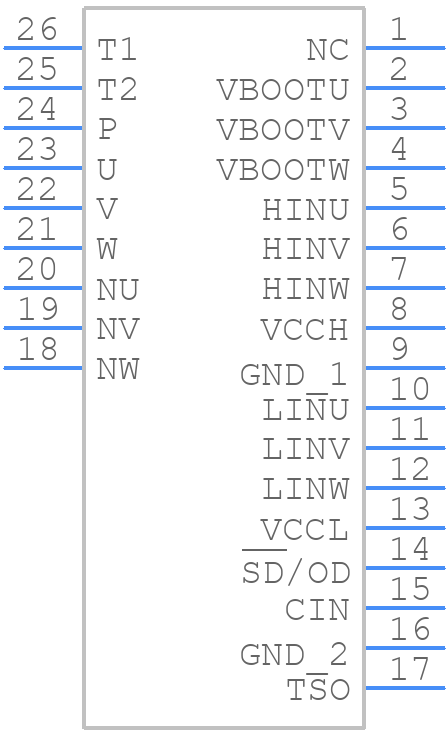

STGIB15CH60TS-L - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

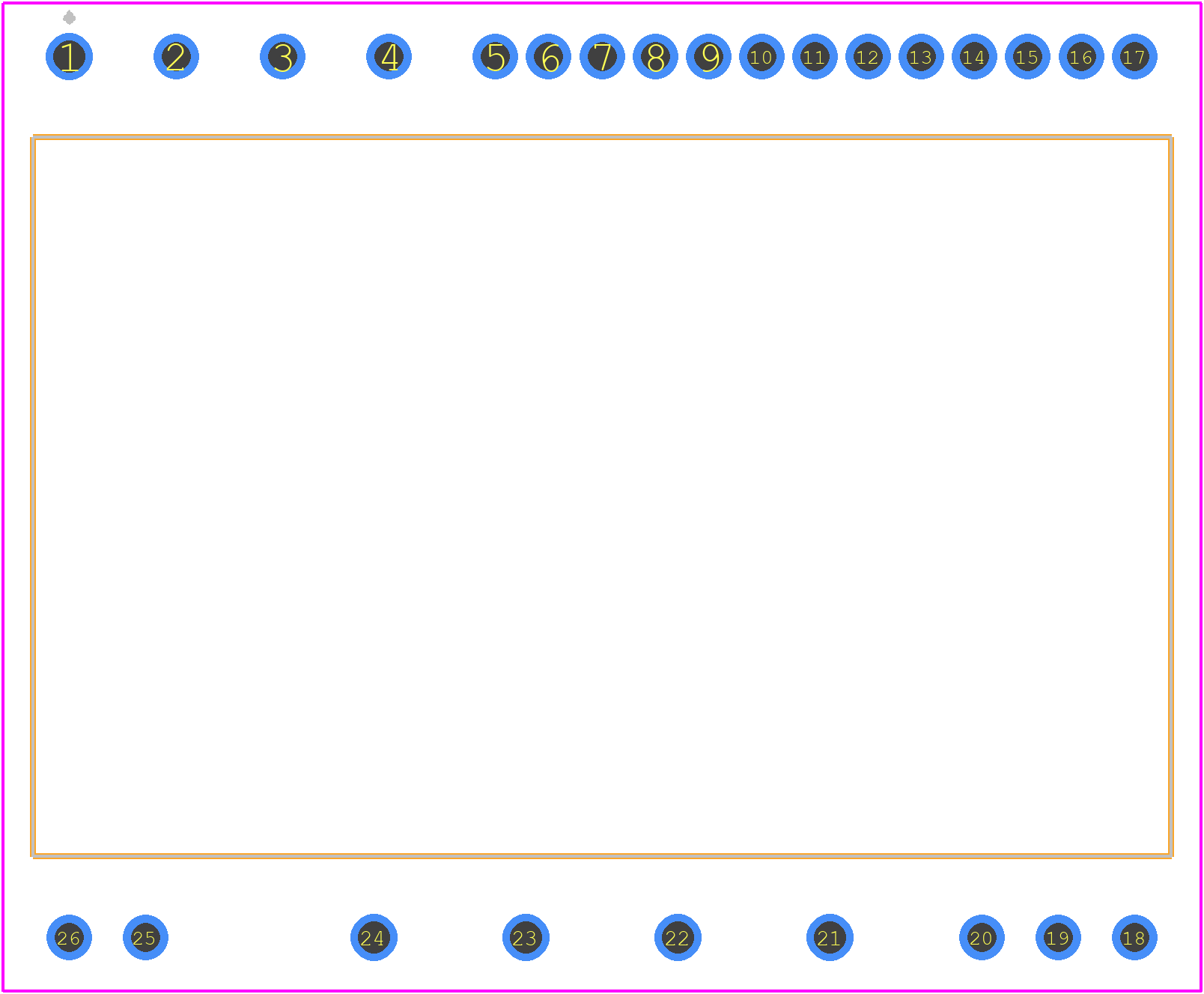

STGIB15CH60TS-L - STMicroelectronics PCB footprint - Other - Other - SDIP2B-26L type L1
click to zoom
3D Models
STGIB15CH60TS-L - STMicroelectronics - 3D model - Other - SDIP2B-26L type L1
click to zoom

STGIB15CH60TS-L Details

  • Manufacturer Part Number:

    STGIB15CH60TS-L

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    Module-26

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-XDMA-T26

  • JESD-609 Code:

    e3

  • Length:

    38 mm

  • Number of Functions:

    1

  • Number of Terminals:

    26

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    40 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    6 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    13.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Width:

    24 mm

STGIB15CH60TS-L Frequently Asked Questions (FAQs)

  • The maximum junction temperature (Tj) for the STGIB15CH60TS-L is 150°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 125°C for reliable operation.
  • To ensure proper cooling, make sure to provide a sufficient heat sink and thermal interface material (TIM) between the device and the heat sink. The heat sink should be designed to dissipate the maximum power dissipation of the device, which is 125W for the STGIB15CH60TS-L.
  • The recommended gate resistor value for the STGIB15CH60TS-L is between 10Ω and 20Ω. However, the optimal value may vary depending on the specific application and switching frequency. It's recommended to consult the application note or contact STMicroelectronics support for more information.
  • Yes, the STGIB15CH60TS-L is suitable for high-reliability applications. It's manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specified parameters.
  • To protect the STGIB15CH60TS-L from ESD, follow proper handling and storage procedures. Use an anti-static wrist strap or mat, and ensure that all equipment and tools are properly grounded. Avoid touching the device's pins or handling it in a way that could generate static electricity.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STGIB15CH60TS-L Overview

Use the download button to access the STGIB15CH60TS-L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STGIB, or try a keyword search, such as Motion Control Electronics
