STGIB20M60TS-LZ - STMicroelectronics

Description: SLLIMM 2nd series IPM, 3-phase inverter, 25 A, 600 V short-circuit rugged IGBT

Download STGIB20M60TS-LZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

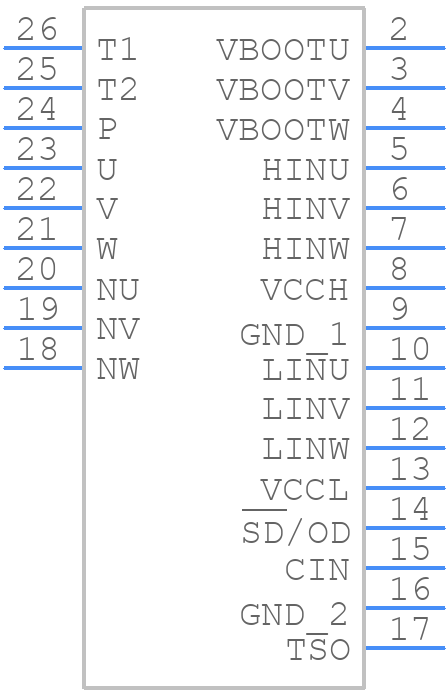

STGIB20M60TS-LZ - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

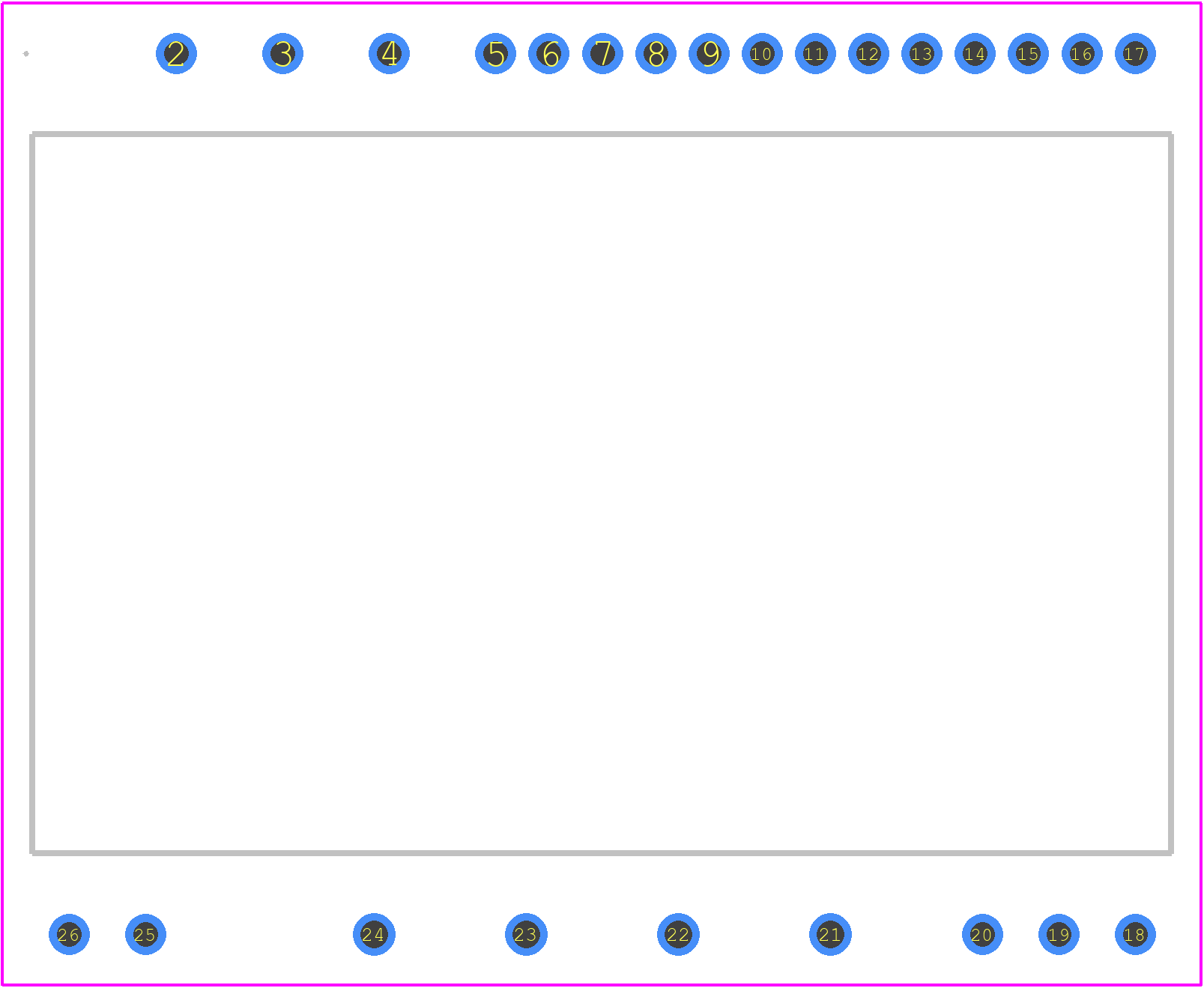

STGIB20M60TS-LZ - STMicroelectronics PCB footprint - Other - Other - STGIB20M60TS-LZ-2
click to zoom
3D Models
STGIB20M60TS-LZ - STMicroelectronics - 3D model - Other - STGIB20M60TS-LZ-2
click to zoom

STGIB20M60TS-LZ Details

  • Manufacturer Part Number:

    STGIB20M60TS-LZ

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-09-25

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-609 Code:

    e3

  • Terminal Finish:

    Matte Tin (Sn) - annealed

STGIB20M60TS-LZ Frequently Asked Questions (FAQs)

  • The maximum junction temperature for the STGIB20M60TS-LZ is 150°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 125°C for reliable operation.
  • To ensure proper cooling, make sure to attach a heat sink to the device, and apply a thermal interface material (TIM) to fill any gaps between the device and heat sink. Also, ensure good airflow around the heat sink.
  • The recommended gate resistor value for the STGIB20M60TS-LZ is between 10 ohms and 100 ohms, depending on the specific application and switching frequency. A higher gate resistor value can help reduce electromagnetic interference (EMI).
  • Yes, the STGIB20M60TS-LZ can be used in a parallel configuration to increase the current handling capability. However, it's essential to ensure that the devices are properly matched and that the gate signals are synchronized to prevent uneven current sharing.
  • The recommended dead time for the STGIB20M60TS-LZ is between 100 ns and 500 ns, depending on the specific application and switching frequency. A longer dead time can help reduce shoot-through currents, but may also increase switching losses.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STGIB20M60TS-LZ Overview

Use the download button to access the STGIB20M60TS-LZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STGIB, or try a keyword search, such as Motion Control Electronics

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
