STGIPNS3H60T-H - STMicroelectronics

Description: IGBT Modules SLLIMM-nano small low-loss intelligent molded module IPM, 3 A, 600 V 3-phase IGBT inverter bridge

Download STGIPNS3H60T-H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

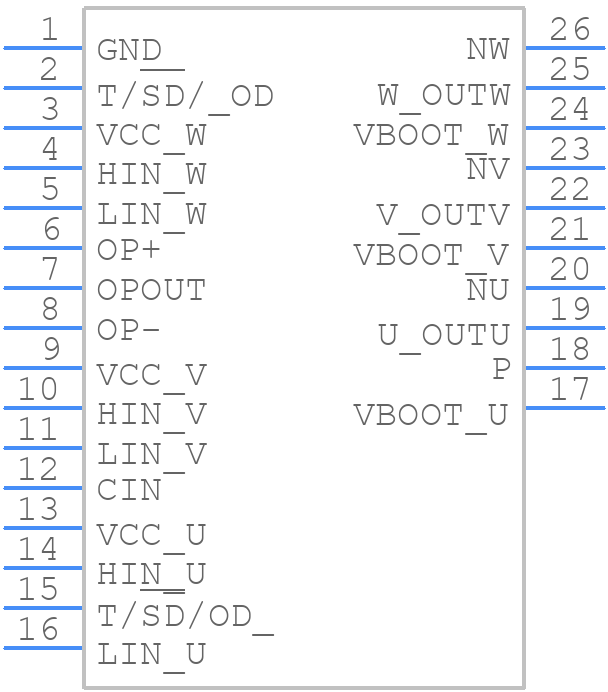

STGIPNS3H60T-H - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STGIPNS3H60T-H - STMicroelectronics PCB footprint - Other - Other - STGIPNS3H60T-H-4
click to zoom
3D Models
STGIPNS3H60T-H - STMicroelectronics - 3D model - Other - STGIPNS3H60T-H-4
click to zoom

STGIPNS3H60T-H Details

  • Manufacturer Part Number:

    STGIPNS3H60T-H

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    NSDIP-26

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-XDMA-G26

  • Length:

    29.15 mm

  • Number of Functions:

    1

  • Number of Terminals:

    26

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Equivalence Code:

    MODULE,26LEAD,.67

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    3.45 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    13.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Width:

    12.45 mm

STGIPNS3H60T-H Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the STGIPNS3H60T-H is -40°C to 150°C.
  • To ensure reliability, it's essential to follow the recommended thermal management guidelines, including proper heat sinking, thermal interface materials, and airflow management.
  • The recommended gate drive voltage for the STGIPNS3H60T-H is between 10V to 15V, with a maximum voltage of 20V.
  • To protect the device, use a suitable overvoltage protection (OVP) circuit and overcurrent protection (OCP) mechanism, such as a fuse or a current-sensing resistor.
  • Follow the recommended PCB layout and thermal design guidelines provided in the application note AN5042 from STMicroelectronics, which includes guidelines for thermal vias, copper pours, and heat sink attachment.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STGIPNS3H60T-H Overview

Use the download button to access the STGIPNS3H60T-H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STGIP, or try a keyword search, such as Motion Control Electronics
