STGIPQ3H60T-HZS - STMicroelectronics

Description: SLLIMM-nano 2nd series IPM, 3 A, 600 V, 3-phase inverter bridge IGBT

Download STGIPQ3H60T-HZS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

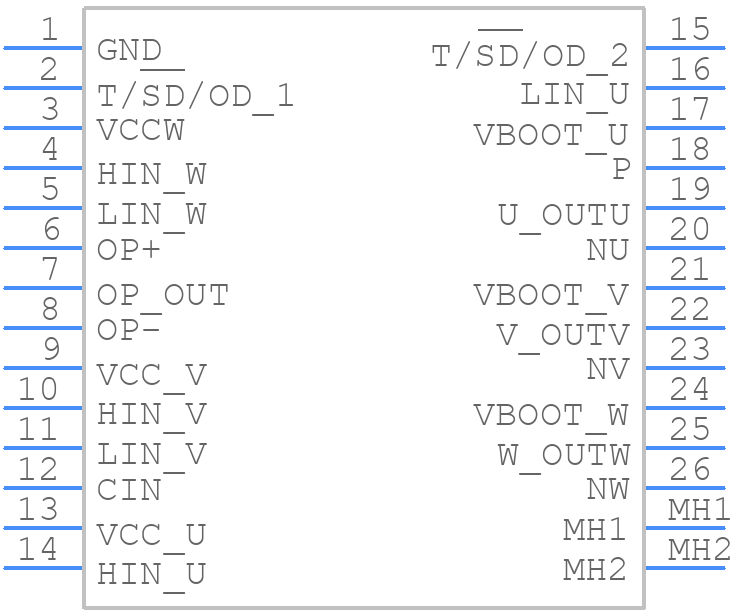

STGIPQ3H60T-HZS - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

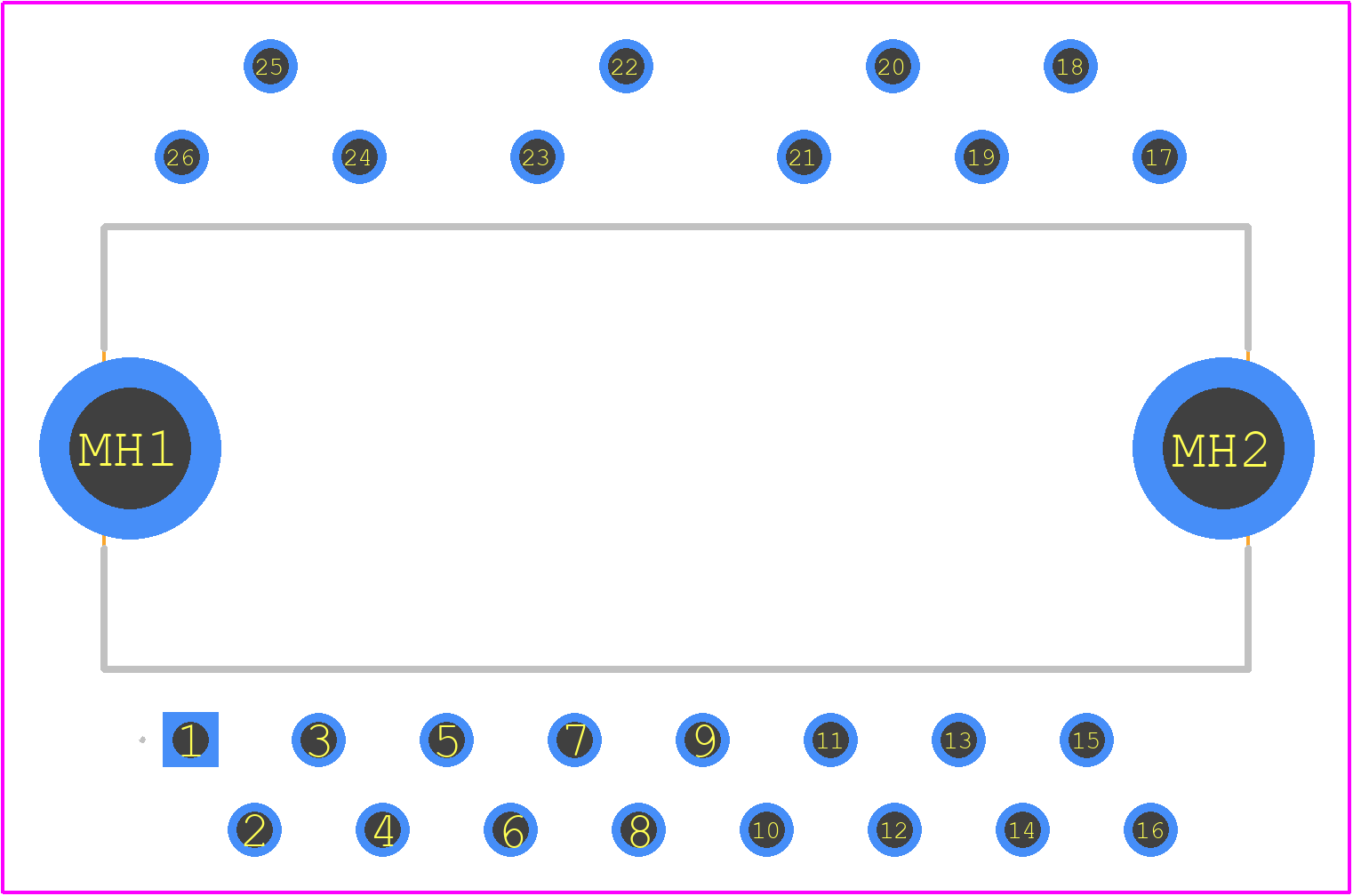

STGIPQ3H60T-HZS - STMicroelectronics PCB footprint - Other - Other - STGIPQ3H60T-HZS-5
click to zoom
3D Models
STGIPQ3H60T-HZS - STMicroelectronics - 3D model - Other - STGIPQ3H60T-HZS-5
click to zoom

STGIPQ3H60T-HZS Details

  • Manufacturer Part Number:

    STGIPQ3H60T-HZS

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PXFM-T26

  • Length:

    32.15 mm

  • Number of Functions:

    1

  • Number of Terminals:

    26

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    6 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    XFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    4.2 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    13.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    12.45 mm

STGIPQ3H60T-HZS Frequently Asked Questions (FAQs)

  • The maximum junction temperature for the STGIPQ3H60T-HZS is 150°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 125°C for reliable operation.
  • To ensure proper cooling, make sure to provide a sufficient heat sink and thermal interface material between the device and the heat sink. The heat sink should be designed to dissipate the maximum power dissipation of the device, which is 250W for the STGIPQ3H60T-HZS.
  • The recommended gate resistor value for the STGIPQ3H60T-HZS is between 10Ω and 20Ω. However, the optimal value may vary depending on the specific application and switching frequency.
  • Yes, the STGIPQ3H60T-HZS is a high-reliability device, suitable for use in aerospace, defense, and other high-reliability applications. It is manufactured using a robust process and is screened to ensure high reliability.
  • To protect the STGIPQ3H60T-HZS from ESD, handle the device by the body, not the leads. Use an ESD wrist strap or mat, and ensure that all equipment and tools are properly grounded. Avoid touching the device's leads or pins.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STGIPQ3H60T-HZS Overview

Use the download button to access the STGIPQ3H60T-HZS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STGIP, or try a keyword search, such as Motion Control Electronics
