STGIPS10K60T - STMicroelectronics

Description: STMicroelectronics STGIPS10K60T, Smart Power Module, 3 Phase, 10 A max, 600 V, 25-Pin SDIP

Download STGIPS10K60T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

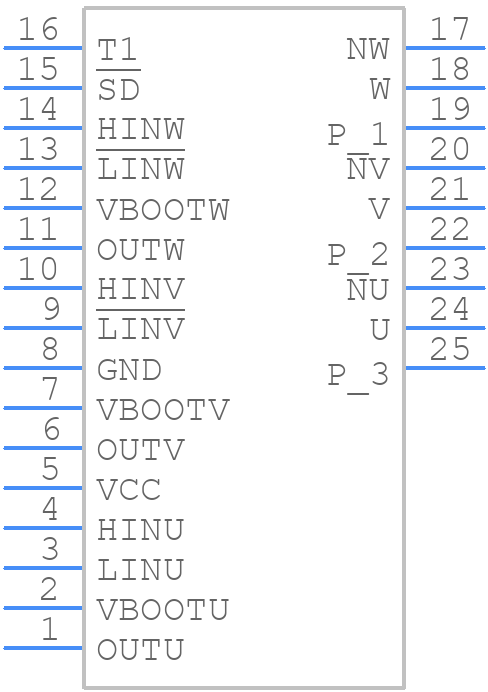

Symbol
STGIPS10K60T - STMicroelectronics - PCB symbol
click to zoom

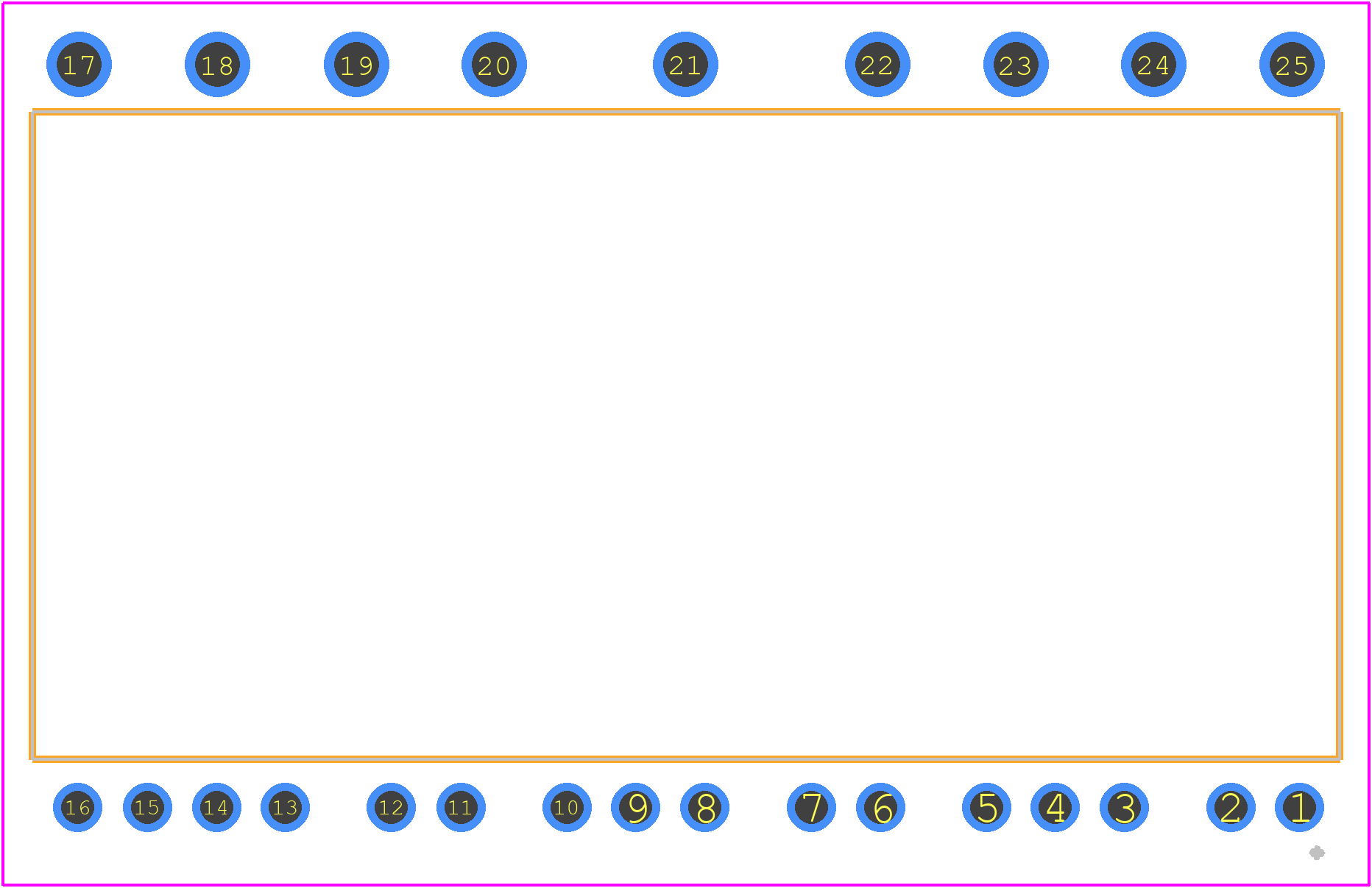

PCB Footprints
STGIPS10K60T - STMicroelectronics PCB footprint - Other - Other - STGIPS10K60A
click to zoom
3D Models
STGIPS10K60T - STMicroelectronics - 3D model - Other - STGIPS10K60A
click to zoom

STGIPS10K60T Details

  • Manufacturer Part Number:

    STGIPS10K60T

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SDIP-25

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDMA-T25

  • Length:

    44.4 mm

  • Number of Functions:

    1

  • Number of Terminals:

    25

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Equivalence Code:

    MODULE,25LEAD,1.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    7.5 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    13.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    22 mm

STGIPS10K60T Frequently Asked Questions (FAQs)

  • The maximum junction temperature that the STGIPS10K60T can withstand is 150°C.
  • To ensure reliability, it is recommended to follow the recommended operating conditions, use a suitable thermal management system, and implement over-temperature protection.
  • The recommended gate drive voltage for the STGIPS10K60T is between 10V and 15V, with a maximum of 20V.
  • Yes, the STGIPS10K60T can be used in a parallel configuration to increase power handling, but it is essential to ensure that the devices are properly matched and synchronized to avoid uneven current sharing.
  • To protect the STGIPS10K60T from overvoltage and overcurrent, it is recommended to use a suitable voltage regulator, overvoltage protection circuitry, and current sensing and limiting circuitry.
