STGO30H60DLLFBAG - STMicroelectronics

Description: Automotive-grade trench gate field-stop, 600 V, 30 A, high-speed HB series IGBT in a TO‑LL package

Download STGO30H60DLLFBAG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

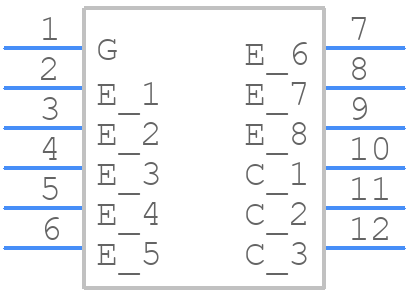

STGO30H60DLLFBAG - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STGO30H60DLLFBAG - STMicroelectronics PCB footprint - Other - Other - STGO30H60DLLFBAG
click to zoom
3D Models
STGO30H60DLLFBAG - STMicroelectronics - 3D model - Other - STGO30H60DLLFBAG
click to zoom

STGO30H60DLLFBAG Details

  • Manufacturer Part Number:

    STGO30H60DLLFBAG

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30
