STHVDAC-256MTGF3 - STMicroelectronics

Description: Antenna tuning circuit with turbo and glide DAC 6-CH 7-bit 20-Pin Flip-Chip T/R

Download STHVDAC-256MTGF3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

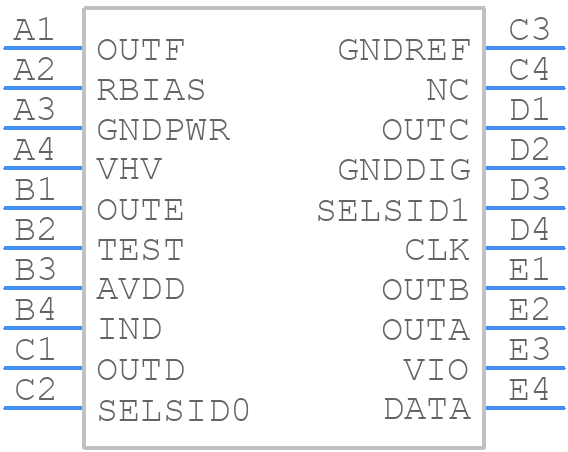

Symbol
STHVDAC-256MTGF3 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STHVDAC-256MTGF3 - STMicroelectronics PCB footprint - Other - Other - STHVDAC-256MTGF3-7
click to zoom
3D Models
STHVDAC-256MTGF3 - STMicroelectronics - 3D model - Other - STHVDAC-256MTGF3-7
click to zoom

STHVDAC-256MTGF3 Details

  • Manufacturer Part Number:

    STHVDAC-256MTGF3

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, WLCSP-20

  • ECCN Code:

    EAR99

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • JESD-30 Code:

    R-PBGA-B20

  • Length:

    2.23 mm

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    0.64 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    OTHER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    1.94 mm

STHVDAC-256MTGF3 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5289, which includes guidelines for signal routing, grounding, and decoupling to minimize noise and ensure optimal performance.
  • The STHVDAC-256MTGF3 has a complex configuration process. It's recommended to use the STMicroelectronics' graphical user interface (GUI) tool, DAC-Configurator, to generate the configuration code and ensure correct setup for your specific application.
  • The maximum output current of the STHVDAC-256MTGF3 is 25 mA per channel, but it's recommended to limit the output current to 10 mA per channel to ensure optimal performance and minimize power consumption.
  • The POR and BOR features are enabled by default. To handle these features, ensure that the power supply is stable and within the recommended voltage range. You can also use external circuitry to filter out power glitches and noise.
  • The recommended clock frequency for the STHVDAC-256MTGF3 is between 10 MHz and 40 MHz. However, the device can operate at frequencies up to 50 MHz, but with reduced performance and increased power consumption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STHVDAC-256MTGF3 Overview

Use the download button to access the STHVDAC-256MTGF3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STHVD, or try a keyword search, such as Other Telecom ICs
