STI6N90K5 - STMicroelectronics

Description: N-channel 900 V, 0.91 Ω typ., 6 A MDmesh™ K5 Power MOSFET in an I²PAK package

Download STI6N90K5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STI6N90K5 - STMicroelectronics - PCB symbol
click to zoom

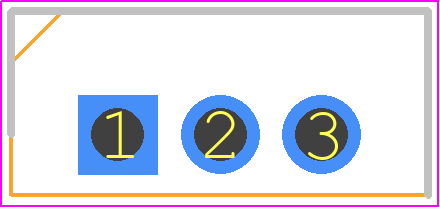

PCB Footprints
STI6N90K5 - STMicroelectronics PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - I2PAK__
click to zoom
3D Models
STI6N90K5 - STMicroelectronics - 3D model - Transistor Outline, Vertical - I2PAK__
click to zoom

STI6N90K5 Details

  • Manufacturer Part Number:

    STI6N90K5

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    I2PAK-3

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    210 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    900 V

  • Drain Current-Max (ID):

    6 A

  • Drain-source On Resistance-Max:

    1.1 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    1.2 pF

  • JESD-30 Code:

    R-PSIP-T3

  • JESD-609 Code:

    e3

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    110 W

  • Pulsed Drain Current-Max (IDM):

    24 A

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

STI6N90K5 Frequently Asked Questions (FAQs)

  • The maximum safe operating area (SOA) for the STI6N90K5 is not explicitly stated in the datasheet. However, according to STMicroelectronics' application notes, the device can operate safely up to 100°C junction temperature, with a maximum voltage of 600V and a maximum current of 6A.
  • To ensure proper cooling, it's essential to provide a sufficient heat sink with a thermal resistance of less than 1°C/W. The heat sink should be attached to the device using a thermal interface material (TIM) with a thermal conductivity of at least 1 W/mK. Additionally, ensure good airflow around the heat sink to dissipate heat efficiently.
  • The recommended gate resistor value for the STI6N90K5 depends on the specific application and switching frequency. As a general guideline, a gate resistor value between 10Ω and 100Ω is suitable for most applications. However, it's essential to consult the datasheet and application notes for more specific guidance.
  • Yes, the STI6N90K5 is suitable for high-frequency switching applications up to 100 kHz. However, it's crucial to consider the device's switching losses, gate charge, and parasitic capacitances when designing the circuit. Additionally, ensure that the device is properly cooled and the layout is optimized for high-frequency operation.
  • To protect the STI6N90K5 from overvoltage and overcurrent, it's recommended to use a voltage clamp or a transient voltage suppressor (TVS) diode in parallel with the device. Additionally, consider using a current sense resistor and a fuse or a current limiter to prevent overcurrent conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STI6N90K5 Overview

Use the download button to access the STI6N90K5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STI6N, or try a keyword search, such as Power Field-Effect Transistors

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
