- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for STK433-130-E
- Part Number STK433-130-E
- Manufacturer Sanyo
- Pin Count 15
- Part Category Integrated Circuit
- Package Category Other

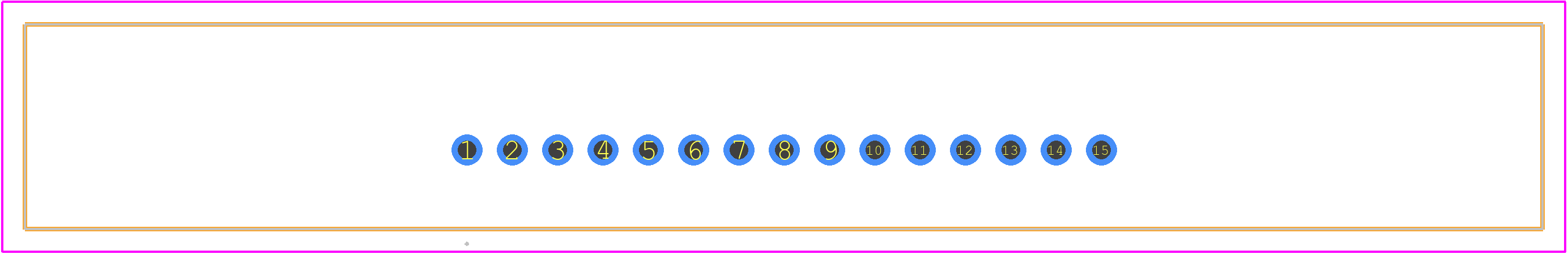

- Footprint Name Other - STK433-130-E-1
- Released Date Nov 18, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
STK433-130-E Details
-
Manufacturer Part Number:
STK433-130-E
-
Part Life Cycle Code:
Transferred
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
SANYO Semiconductor Co Ltd
-
Consumer IC Type:
CLASS AB AUDIO AMPLIFIER
STK433-130-E Frequently Asked Questions (FAQs)
-
The recommended operating voltage range for the STK433-130-E is 10V to 30V, with a typical voltage of 24V.
-
To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 100uF and a maximum equivalent series resistance (ESR) of 1 ohm.
-
The maximum power dissipation of the STK433-130-E is 130W, with a maximum junction temperature of 150°C.
-
To protect the STK433-130-E from overheating, it is recommended to provide adequate heat sinking, such as a heat sink with a thermal resistance of 2°C/W or less, and to ensure good airflow around the device.
-
The recommended input capacitor value for the STK433-130-E is 100uF to 220uF, with a voltage rating of 50V or higher.
Trust Checks
Expert Contribution
System Verified
Community Approved
STK433-130-E Overview

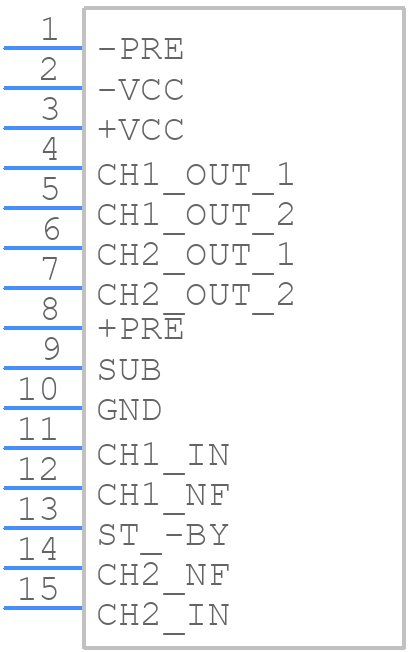

Use the download button to access the STK433-130-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STK43,
or try a keyword search, such as Audio/Video Amplifiers
