A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat. Multiple vias can be used to connect the thermal pad to an internal or bottom-side copper plane.
Ensure that the device is operated within the recommended temperature range (TJ = -40°C to 150°C). Use a heat sink or thermal interface material to reduce thermal resistance. Monitor the device's junction temperature to prevent overheating.
The STK433-130N-E has internal ESD protection, but it's still recommended to follow standard ESD handling procedures when handling the device. Use an ESD wrist strap or mat, and ensure that the PCB is designed with ESD protection in mind.
Yes, the STK433-130N-E is qualified for automotive and high-reliability applications. However, additional testing and validation may be required to meet specific industry standards (e.g., AEC-Q100). Consult with onsemi for more information.
Check the input voltage, output load, and PCB layout for any issues. Verify that the device is properly configured and that the output capacitor is suitable for the application. Consult the datasheet and application notes for troubleshooting guidelines.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
STK433-130N-E Overview

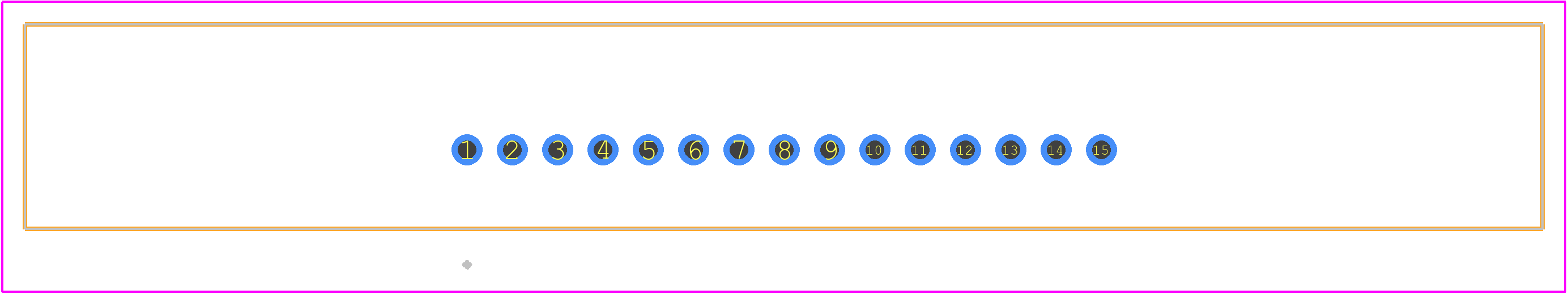

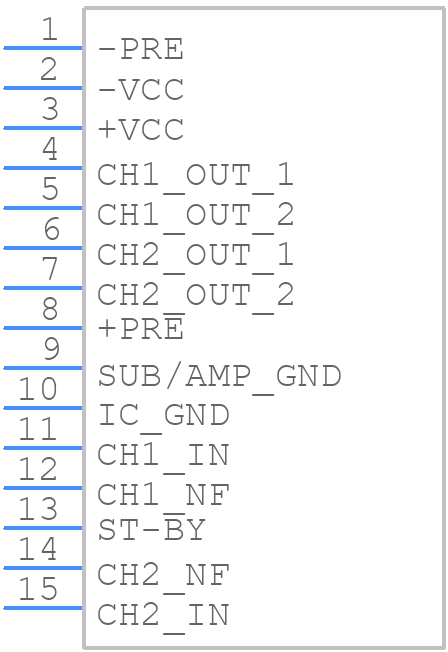

Use the download button to access the STK433-130N-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STK43,
or try a keyword search, such as Audio/Video Amplifiers
Suggested Parts
If you searched for STK433-130N-E, you might also be interested in these parts:
