The recommended operating temperature range for the STK433-760-E is -20°C to +75°C, as specified in the datasheet. However, it's essential to note that the device can tolerate storage temperatures between -40°C and +125°C.
To ensure the stability of the output voltage, it's crucial to follow the recommended layout and component selection guidelines provided in the datasheet. Additionally, using a suitable output capacitor with a low ESR (Equivalent Series Resistance) and a sufficient capacitance value can help maintain output voltage stability.
The maximum input voltage that the STK433-760-E can handle is 18V, as specified in the datasheet. Exceeding this voltage may damage the device or affect its performance.
While the STK433-760-E is a general-purpose voltage regulator, it may not be suitable for high-reliability or automotive applications due to its limited operating temperature range and lack of specific certifications (e.g., AEC-Q100). It's recommended to consult with SANYO Semiconductor Co Ltd or a qualified engineer to determine the device's suitability for such applications.
To calculate the power dissipation of the STK433-760-E, you can use the following formula: Pd = (Vin - Vout) x Iout, where Pd is the power dissipation, Vin is the input voltage, Vout is the output voltage, and Iout is the output current. Ensure that the calculated power dissipation does not exceed the maximum rating specified in the datasheet.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
STK433-760-E Overview

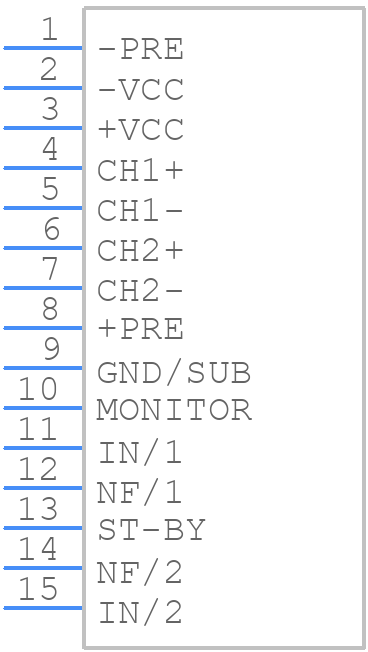

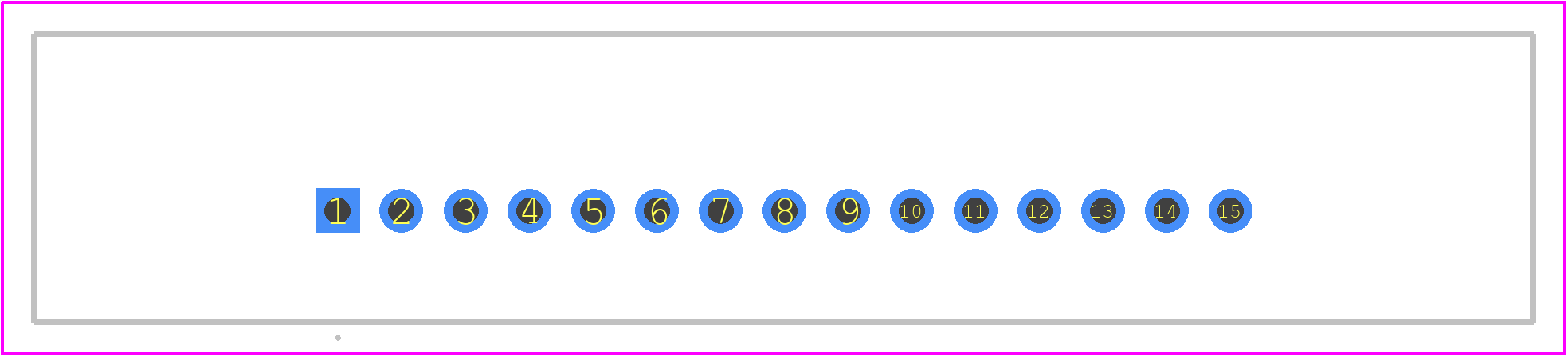

Use the download button to access the STK433-760-E schematic symbol, PCB footprint, and 3D model.
