STK544UC62K-E - onsemi

Description: Over-current Protection Circuit; Under-voltage lockout for all channels; Upper/lower ON prevention circuit; Thermistor for temperature monitor; Direct input of CMOS level control signals without an insulating

Download STK544UC62K-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

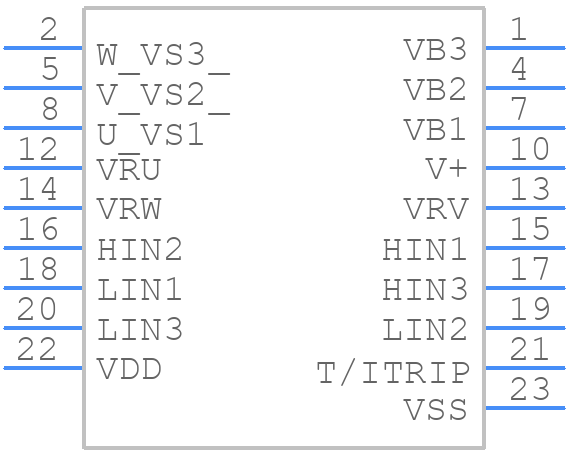

STK544UC62K-E - onsemi - PCB symbol
click to zoom
PCB Footprints

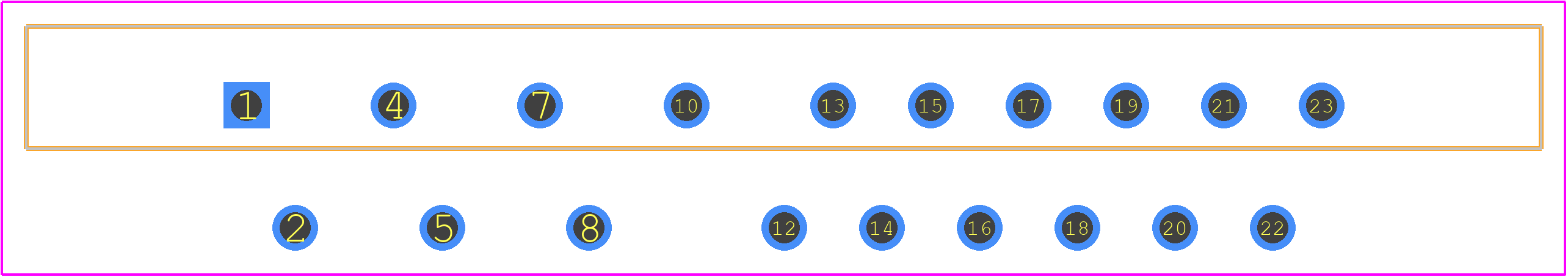

STK544UC62K-E - onsemi PCB footprint - Other - Other - STK544UC62K-E
click to zoom
3D Models
STK544UC62K-E - onsemi - 3D model - Other - STK544UC62K-E
click to zoom

STK544UC62K-E Details

  • Manufacturer Part Number:

    STK544UC62K-E

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SIP23 56x2.18

  • Package Description:

    SIP-23/19

  • Manufacturer Package Code:

    127FC

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    3

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-XSFM-T19

  • Number of Functions:

    1

  • Number of Terminals:

    19

  • Output Current-Max:

    20 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    SFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Supply Voltage-Max (Vsup):

    450 V

  • Supply Voltage-Nom (Vsup):

    280 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Nickel (Sn/Ni)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

STK544UC62K-E Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a heat sink or a metal plate for efficient heat dissipation.
  • Ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout. Also, consider derating the device's power handling at high temperatures.
  • The maximum allowed voltage on the input pins is 20V, but it's recommended to keep it below 18V to ensure reliable operation and prevent damage to the device.
  • Yes, the STK544UC62K-E is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, ensure that you follow the recommended design and testing guidelines for these applications.
  • Check the input voltage, output load, and feedback resistors. Ensure that the device is properly configured and that the output voltage is within the specified range. Use an oscilloscope to monitor the output voltage and check for any oscillations or noise.
