STK621-033N-E - onsemi

Description: Motor / Motion / Ignition Controllers & Drivers 3PHASE INVERTER HIC

Download STK621-033N-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

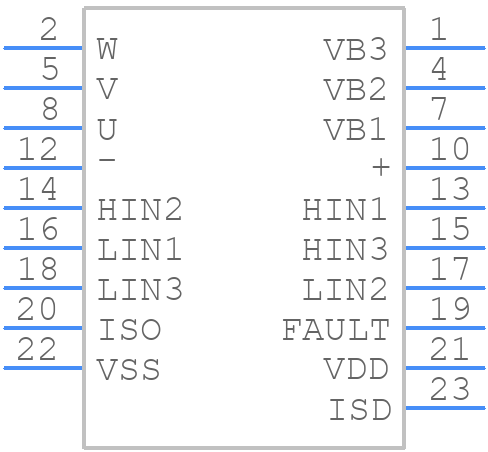

Symbol
STK621-033N-E - onsemi - PCB symbol
click to zoom

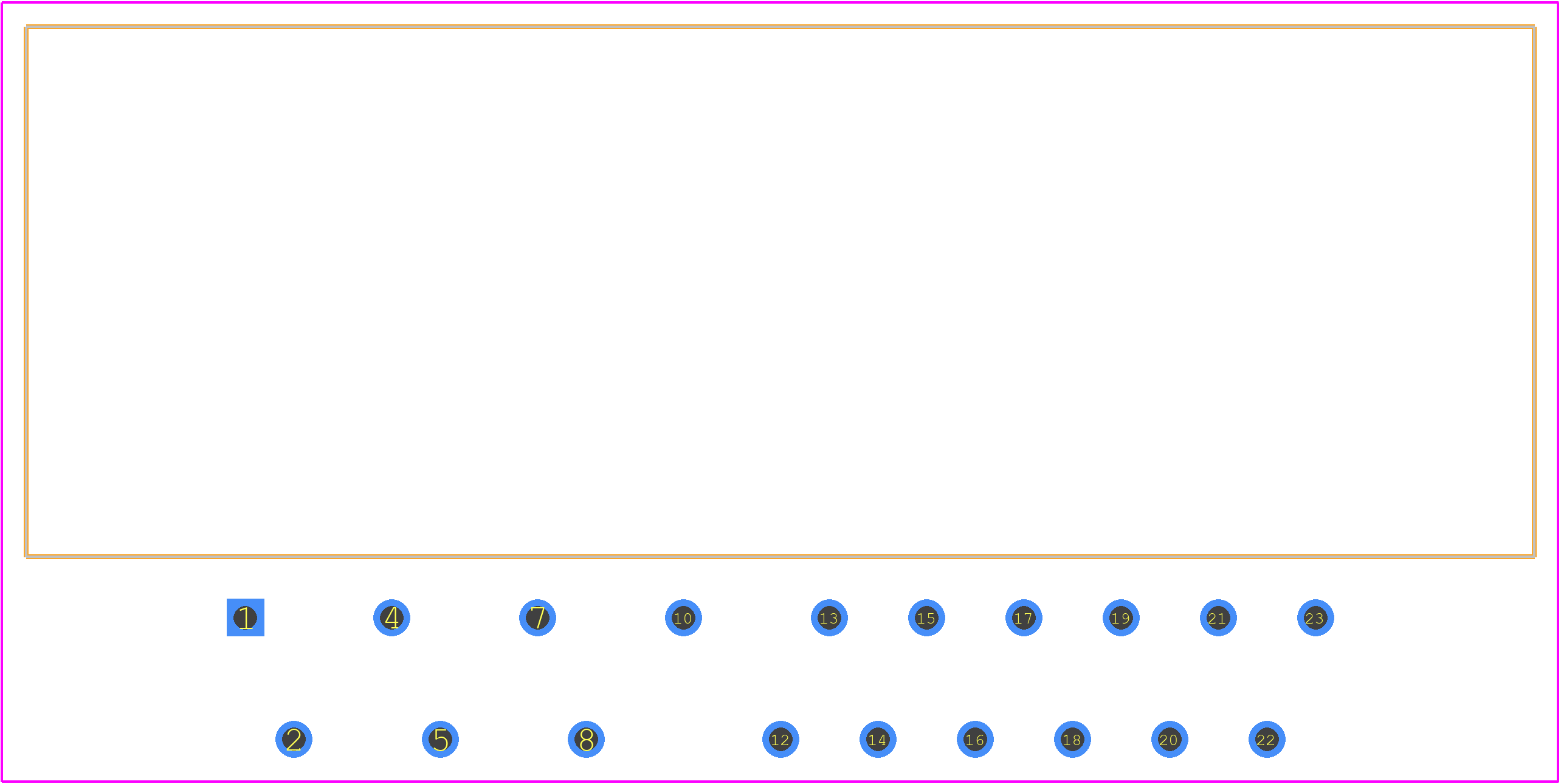

PCB Footprints
STK621-033N-E - onsemi PCB footprint - Other - Other - STK621-033N-E-5
click to zoom
3D Models
STK621-033N-E - onsemi - 3D model - Other - STK621-033N-E-5
click to zoom

STK621-033N-E Details

  • Manufacturer Part Number:

    STK621-033N-E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SIP-23/19

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-XZFM-T19

  • JESD-609 Code:

    e2

  • Number of Functions:

    1

  • Number of Terminals:

    19

  • Output Current-Max:

    30 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    ZIP

  • Package Equivalence Code:

    ZIP19/23H,.2,.1,78FL

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Supply Current-Max (Isup):

    7 mA

  • Supply Voltage-Max (Vsup):

    400 V

  • Supply Voltage-Nom (Vsup):

    280 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Nickel (Sn/Ni)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.98 mm

  • Terminal Position:

    ZIG-ZAG

STK621-033N-E Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the STK621-033N-E is 10V to 30V, with a maximum voltage rating of 40V.
  • To ensure proper thermal management, it is recommended to attach a heat sink to the device, and to ensure good airflow around the device. The maximum junction temperature is 150°C.
  • The maximum current rating for the STK621-033N-E is 3A, with a peak current rating of 6A.
  • It is recommended to use overvoltage protection (OVP) and overcurrent protection (OCP) circuits to protect the device from damage. Additionally, a fuse or circuit breaker can be used to protect against overcurrent conditions.
  • The typical rise time for the STK621-033N-E is 20ns, and the typical fall time is 30ns.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STK621-033N-E Overview

Use the download button to access the STK621-033N-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STK62, or try a keyword search, such as Motion Control Electronics
