Part Image

STK672-442BN-E - onsemi

Description: Obsolete - Unipolar 2-Phase Stepper Motor Driver

Download STK672-442BN-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

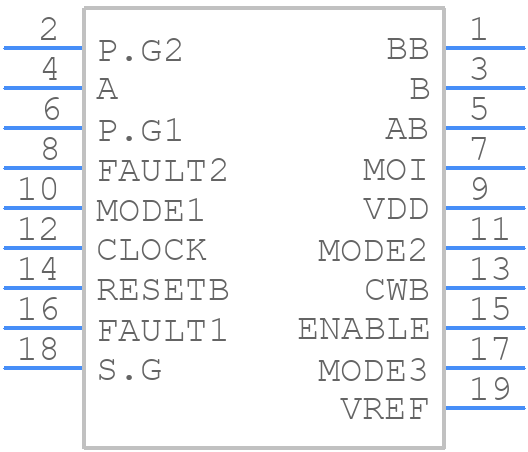

Symbol
STK672-442BN-E - onsemi - PCB symbol
click to zoom

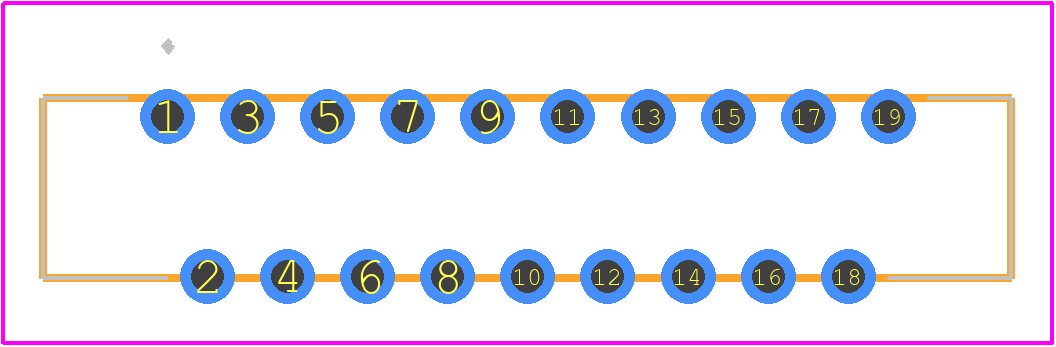

PCB Footprints
STK672-442BN-E - onsemi PCB footprint - Other - Other - STK672-442BN-E-2
click to zoom
3D Models
STK672-442BN-E - onsemi - 3D model - Other - STK672-442BN-E-2
click to zoom

STK672-442BN-E Details

  • Manufacturer Part Number:

    STK672-442BN-E

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SIP-19

  • Package Description:

    24.20 X 14.40 MM, LEAD FREE, SIP-19

  • Manufacturer Package Code:

    127BA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATES IN 0 TO 46V SUPPLY

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-XZFM-T19

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Terminals:

    19

  • Output Current-Max:

    20 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    ZFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    ZIG-ZAG

STK672-442BN-E Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a heat sink or a metal plate to dissipate heat efficiently.
  • The device requires a stable voltage supply and a proper biasing circuit to ensure optimal performance. A voltage regulator and a decoupling capacitor are recommended to filter out noise and ensure a stable voltage supply.
  • The maximum allowed power dissipation for the STK672-442BN-E is 2.5W. Exceeding this limit may cause the device to overheat and reduce its lifespan.
  • The device is sensitive to ESD. It is recommended to handle the device with an anti-static wrist strap or mat, and to use ESD-protected packaging and storage.
  • The recommended operating temperature range for the STK672-442BN-E is -40°C to 150°C. Operating the device outside this range may affect its performance and lifespan.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STK672-442BN-E Overview

Use the download button to access the STK672-442BN-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STK67, or try a keyword search, such as Motion Control Electronics
