STK673-010-E - onsemi

Description: OBSOLETE 3-Phase Stepping Motor Driver Output Current 2.4A, Voltage Supply 4.75V ~ 5.25V, Voltage Load 16V ~ 30V, -40°C ~ 150°C

Download STK673-010-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

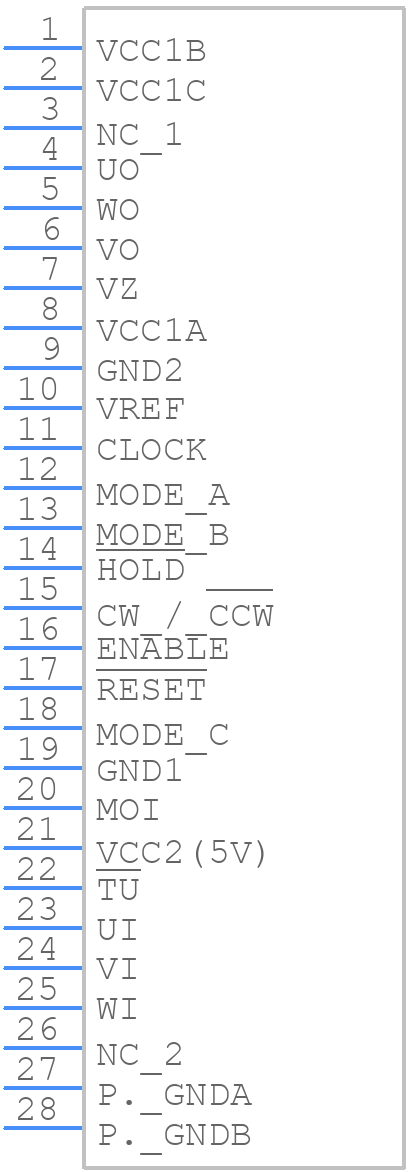

STK673-010-E - onsemi - PCB symbol
click to zoom
PCB Footprints

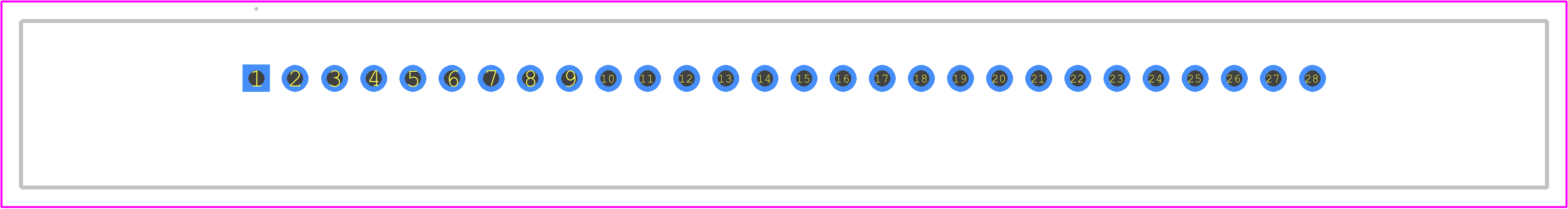

STK673-010-E - onsemi PCB footprint - Other - Other - STK673-010-E-3
click to zoom
3D Models
STK673-010-E - onsemi - 3D model - Other - STK673-010-E-3
click to zoom

STK673-010-E Details

  • Manufacturer Part Number:

    STK673-010-E

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SIP25 78x32

  • Package Description:

    PACKAGE-28

  • Pin Count:

    25

  • Manufacturer Package Code:

    127BQ

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATES IN 16 TO 30 SUPPLY

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-XSFM-T28

  • JESD-609 Code:

    e2

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Output Current-Max:

    4 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    SFM

  • Package Equivalence Code:

    SIP28,.11,79TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Supply Current-Max (Isup):

    12 mA

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Finish:

    Tin/Nickel/Copper (Sn/Ni/Cu)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2 mm

  • Terminal Position:

    SINGLE

STK673-010-E Frequently Asked Questions (FAQs)

  • A 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer is recommended. Ensure a minimum of 1 oz copper thickness and a 1-inch square copper pour on the bottom layer for optimal thermal performance.
  • Ensure proper heat sinking, use a thermal interface material (TIM) with a thermal conductivity of at least 1 W/m-K, and maintain a maximum junction temperature (Tj) of 150°C. Also, consider derating the device's power handling capability at high temperatures.
  • A low-ESR ceramic capacitor with a value of 10-22 μF and a voltage rating of 25-50 V is recommended. X5R or X7R dielectric types are suitable for most applications.
  • Use a shielded inductor, keep the switching node (SW) as short as possible, and use a common-mode choke or ferrite bead on the input lines. Ensure a solid ground plane and use a Faraday shield or metal can to enclose the device.
  • A low-ESR ceramic capacitor with a value of 10-47 μF and a voltage rating of 10-25 V is recommended. X5R or X7R dielectric types are suitable for most applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STK673-010-E Overview

Use the download button to access the STK673-010-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STK67, or try a keyword search, such as Motion Control Electronics
