A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the package can help to dissipate heat efficiently. The datasheet provides a recommended land pattern, but a more detailed layout guide can be found in the onsemi application note AND9173/D.
To ensure reliable operation at high temperatures, it's essential to follow the recommended thermal design guidelines, including proper heat sinking, thermal interface material selection, and airflow management. Additionally, consider using a thermistor or thermocouple to monitor the device temperature and implement thermal protection mechanisms.
To minimize EMI and RFI, use a shielded enclosure, keep the layout compact, and use a common-mode choke or ferrite bead on the input lines. Also, ensure that the PCB layout follows good electromagnetic compatibility (EMC) practices, such as separating analog and digital grounds and using a star-configuration for grounding.
To optimize the output filter design, use a combination of capacitors with different values and types (e.g., ceramic, electrolytic, and film capacitors) to cover a wide frequency range. Also, consider using a pi-filter or a common-mode filter to reduce noise and ripple. The onsemi application note AND9174/D provides more detailed guidance on output filter design.
For accurate testing and measurement, use a 4-wire Kelvin connection to minimize lead resistance and inductance. Also, ensure that the test equipment is properly calibrated, and the measurement setup is well-shielded to minimize noise and interference. The onsemi application note AND9175/D provides more detailed guidance on test and measurement procedures.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
STK681-360-E Overview

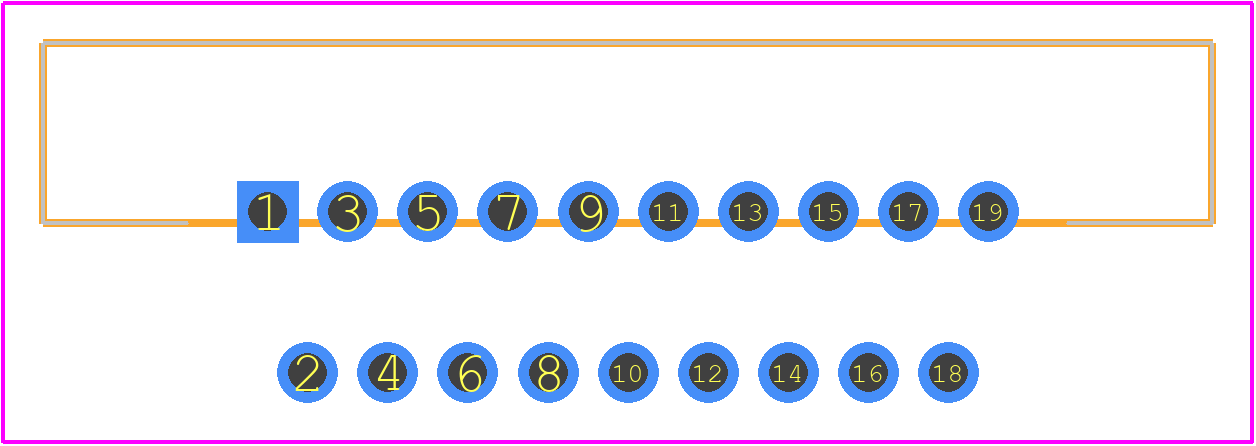

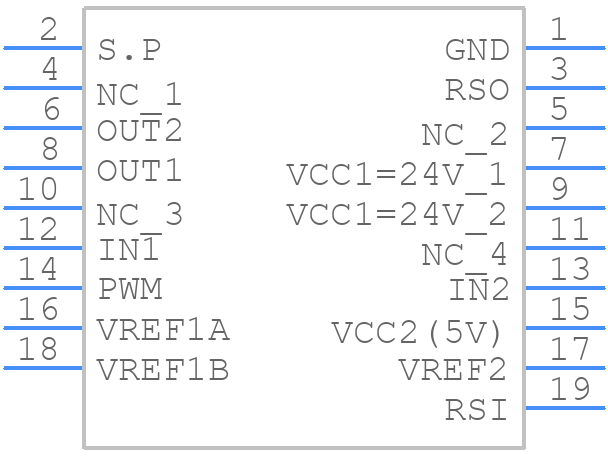

Use the download button to access the STK681-360-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STK68,
or try a keyword search, such as Motion Control Electronics
Suggested Parts
If you searched for STK681-360-E, you might also be interested in these parts:
