A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or heat sink, using thermal vias to dissipate heat, and keeping the surrounding area clear of other components. A 4-layer PCB with a dedicated thermal layer is also recommended.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating temperature range, use a suitable heat sink, and ensure good airflow around the device. Additionally, consider using thermal interface materials and conformal coatings to protect the device from moisture and humidity.
The recommended soldering conditions for the STK984-190-E are: peak temperature of 260°C, soldering time of 10-15 seconds, and a soldering iron temperature of 350-370°C. It's also important to use a solder with a melting point above 217°C and to follow the recommended soldering profile.
To troubleshoot issues with the device's output voltage regulation, check the input voltage, output load, and feedback resistors. Ensure that the input voltage is within the recommended range, the output load is within the specified current limit, and the feedback resistors are correctly configured. Also, verify that the device is properly soldered and that there are no signs of overheating.
Operating the device beyond its recommended operating conditions can lead to reduced reliability, decreased performance, and potentially even device failure. This can include operating the device at temperatures beyond the recommended range, exceeding the maximum current rating, or applying voltages outside the specified range.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
STK984-190-E Overview

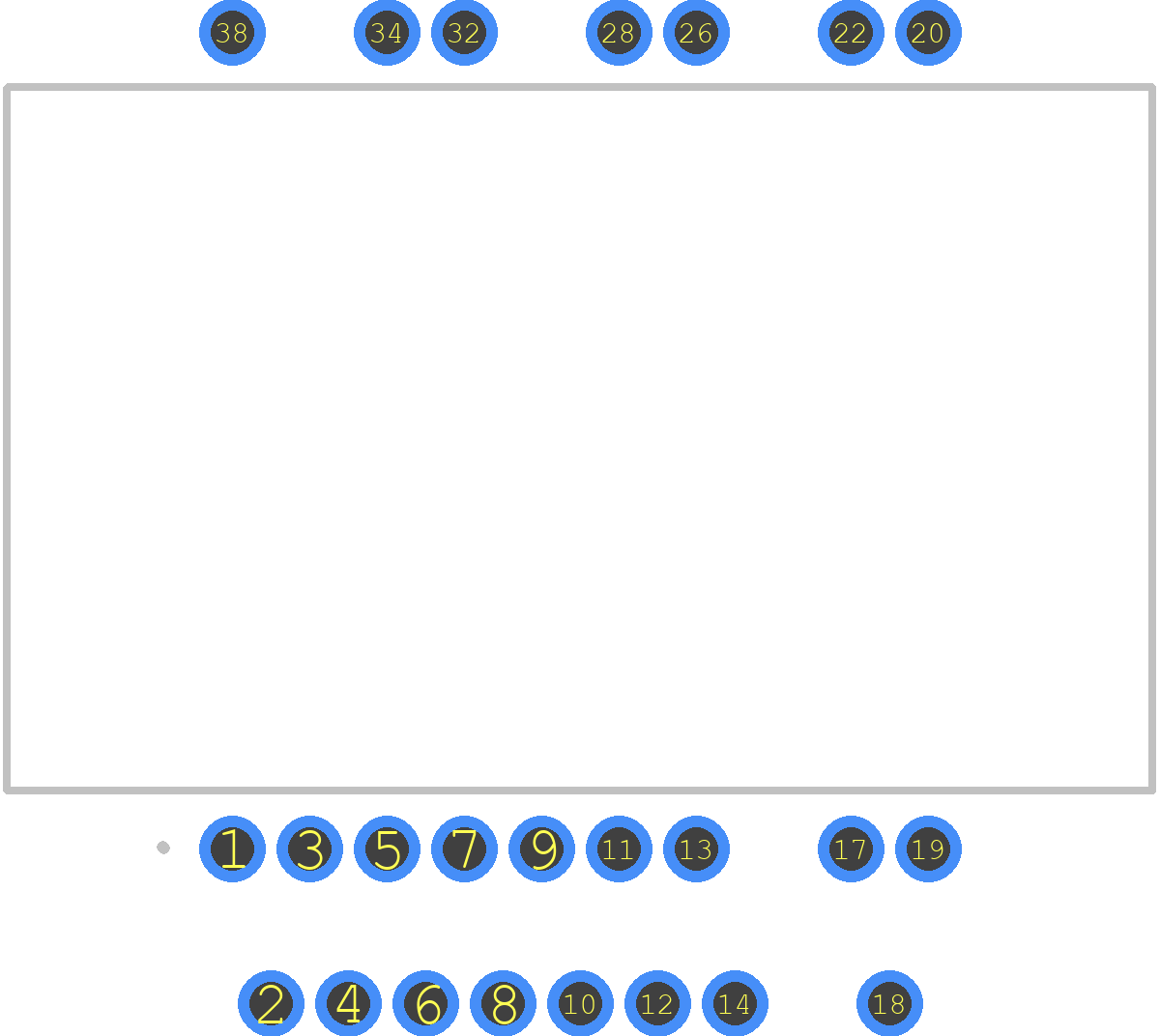

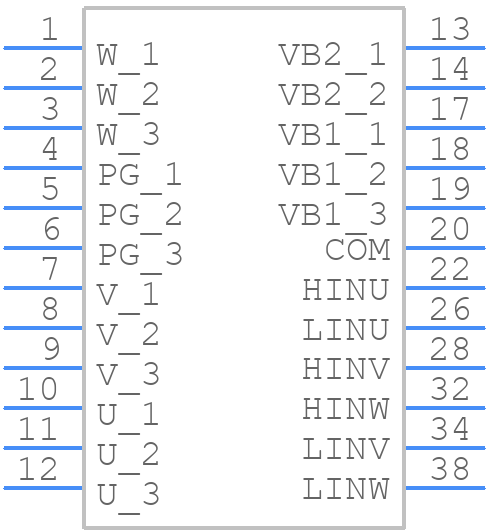

Use the download button to access the STK984-190-E schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like STK98,
or try a keyword search, such as Motion Control Electronics
