STL210N4F7AG - STMicroelectronics

Description: Automotive-grade N-channel 40 V, 1.3 mΩ typ., 120 A STripFET™ F7 Power MOSFET in a PowerFLAT™ 5x6 package

Download STL210N4F7AG Model

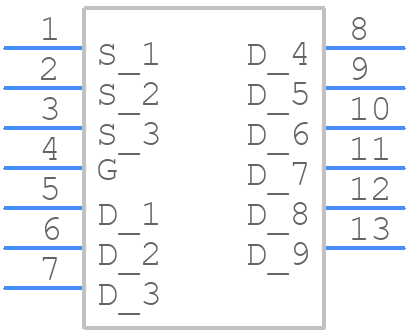

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
STL210N4F7AG - STMicroelectronics PCB footprint - Other - Other - STL210N4F7AG-1
click to zoom
3D Models
STL210N4F7AG - STMicroelectronics  - 3D model - Other - STL210N4F7AG-1
click to zoom

STL210N4F7AG Details

  • Manufacturer Part Number:

    STL210N4F7AG

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5.6

  • Avalanche Energy Rating (Eas):

    300 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    120 A

  • Drain-source On Resistance-Max:

    0.0016 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-F5

  • Number of Elements:

    1

  • Number of Terminals:

    5

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    480 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

STL210N4F7AG Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure optimal thermal performance.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended thermal design guidelines, use a suitable thermal interface material, and ensure proper airflow around the device.
  • The maximum allowed voltage on the VIN pin is 5.5V, and it's recommended to use a voltage regulator or a voltage limiter to prevent damage from voltage spikes or overvoltage conditions.
  • To optimize the layout for low EMI emissions, keep the power traces short and away from sensitive analog signals, use a solid ground plane, and consider using EMI filters or shielding on the PCB.
  • The recommended input capacitor value for the VIN pin is 10uF to 22uF, with a voltage rating of 6.3V or higher, to ensure stable operation and minimize voltage ripple.
