STL210N4LF7AG - STMicroelectronics

Description: Automotive N-channel 40 V, 1.35 mΩ typ., 120 A, STripFET™ F7 Power MOSFET in a PowerFLAT™ 5x6 package

Download STL210N4LF7AG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

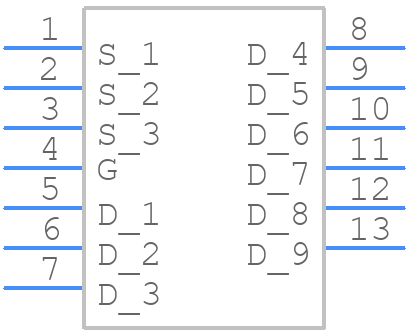

STL210N4LF7AG - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STL210N4LF7AG - STMicroelectronics PCB footprint - Other - Other - STL210N4LF7AG-1
click to zoom
3D Models
STL210N4LF7AG - STMicroelectronics - 3D model - Other - STL210N4LF7AG-1
click to zoom

STL210N4LF7AG Details

  • Manufacturer Part Number:

    STL210N4LF7AG

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5.6

  • Additional Feature:

    BULK: 3000

  • Avalanche Energy Rating (Eas):

    450 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    120 A

  • Drain-source On Resistance-Max:

    0.0025 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    60 pF

  • JESD-30 Code:

    R-PDSO-F8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    150 W

  • Pulsed Drain Current-Max (IDM):

    480 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

STL210N4LF7AG Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in their application note AN5046, which includes guidelines for thermal pad connection, copper pour, and via placement to ensure optimal thermal performance.
  • The input capacitor selection depends on the input voltage, output voltage, and output current. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the input voltage, and a capacitance value between 1uF to 10uF. Refer to the application note AN5046 for more detailed guidance.
  • The maximum allowed voltage on the enable pin (EN) is 6V. Exceeding this voltage may damage the device. It's recommended to use a voltage divider or a level shifter if the control signal is higher than 6V.
  • The STL210N4LF7AG is rated for operation up to 150°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to follow the recommended operating conditions and thermal management guidelines to ensure reliable operation.
  • To ensure EMC, follow the guidelines in the application note AN5046, which includes recommendations for PCB layout, component selection, and shielding. Additionally, consider using a common-mode choke and a filter capacitor to reduce electromagnetic interference (EMI).
