STL25N60M2-EP - STMicroelectronics

Description: N-channel 600 V, 0.184 Ω typ., 16 A MDmesh™ M2 EP Power MOSFET in a PowerFLAT™ 8x8 HV package

Download STL25N60M2-EP Model

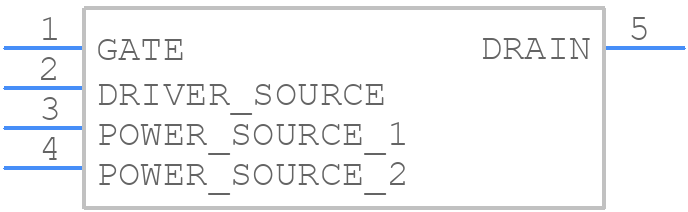

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
STL25N60M2-EP - STMicroelectronics PCB footprint - Other - Other - STL25N60M2-EP-1
click to zoom
3D Models
STL25N60M2-EP - STMicroelectronics  - 3D model - Other - STL25N60M2-EP-1
click to zoom

STL25N60M2-EP Details

  • Manufacturer Part Number:

    STL25N60M2-EP

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Avalanche Energy Rating (Eas):

    180 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    600 V

  • Drain Current-Max (ID):

    16 A

  • Drain-source On Resistance-Max:

    0.205 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    1.6 pF

  • JESD-30 Code:

    S-PSSO-N4

  • Number of Elements:

    1

  • Number of Terminals:

    4

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    125 W

  • Pulsed Drain Current-Max (IDM):

    64 A

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

STL25N60M2-EP Frequently Asked Questions (FAQs)

  • The maximum operating junction temperature of the STL25N60M2-EP is 150°C.
  • To ensure reliability, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, minimizing thermal resistance, and avoiding thermal hotspots.
  • The recommended gate drive voltage for the STL25N60M2-EP is between 10V and 15V, with a maximum gate-source voltage of ±20V.
  • To protect the STL25N60M2-EP from ESD, handle the device with anti-static wrist straps, mats, or bags, and ensure that the device is stored in a conductive container or bag.
  • The maximum allowable power dissipation of the STL25N60M2-EP is 150W, but this value can be derated based on the operating temperature and other factors.
