The maximum operating junction temperature of the STL26N65DM2 is 175°C, as specified in the datasheet. However, it's recommended to derate the power dissipation to ensure reliable operation and prevent thermal runaway.
To ensure proper biasing, make sure to follow the recommended operating conditions and biasing schemes outlined in the datasheet. This includes setting the gate-source voltage (Vgs) within the recommended range, typically between 2V to 10V, and ensuring the drain-source voltage (Vds) is within the maximum rating.
For optimal thermal performance, it's recommended to use a PCB layout that provides good thermal conductivity and heat dissipation. This includes using a thermal pad on the bottom of the package, connecting it to a large copper area on the PCB, and using thermal vias to dissipate heat to the other side of the board. Additionally, ensure good airflow around the device and consider using a heat sink if necessary.
To protect the STL26N65DM2 from ESD, follow proper handling and storage procedures, such as using anti-static bags, wrist straps, and mats. During PCB assembly, ensure that the device is handled and soldered in an ESD-controlled environment. Additionally, consider adding ESD protection devices, such as TVS diodes, to the PCB design.
The STL26N65DM2 is a high-reliability device with a typical lifespan of 10 to 15 years or more, depending on the operating conditions and environmental factors. However, it's essential to follow proper design, manufacturing, and testing procedures to ensure the device meets the required reliability standards.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
STL26N65DM2 Overview

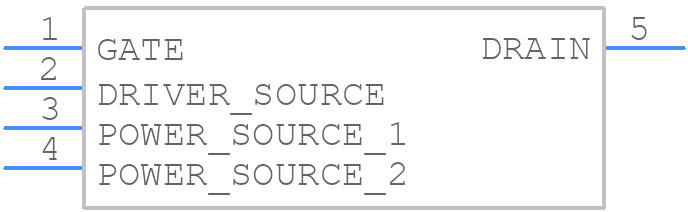

Use the download button to access the STL26N65DM2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STL26,
or try a keyword search, such as Power Field-Effect Transistors
