STL26NM60N - STMicroelectronics

Description: N-channel 600 V, 0.160 Ohm typ., 19 A MDmesh(TM) II Power MOSFET in PowerFLAT(TM) 8x8 HV package

Download STL26NM60N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

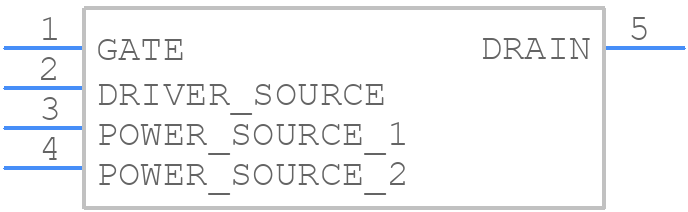

STL26NM60N - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STL26NM60N - STMicroelectronics PCB footprint - Other - Other - STL26NM60N-1
click to zoom
3D Models
STL26NM60N - STMicroelectronics - 3D model - Other - STL26NM60N-1
click to zoom

STL26NM60N Details

  • Manufacturer Part Number:

    STL26NM60N

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    8 X 8 MM, ROHS COMPLIANT, POWERFLAT-5

  • Pin Count:

    5

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    400 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    600 V

  • Drain Current-Max (ID):

    2.7 A

  • Drain-source On Resistance-Max:

    0.185 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    S-PDSO-N5

  • Number of Elements:

    1

  • Number of Terminals:

    5

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    10.8 A

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

STL26NM60N Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the STL26NM60N is -40°C to 150°C.
  • To ensure proper biasing, the STL26NM60N requires a VCC voltage of 1.71V to 1.89V and a VSS voltage of 0V. Additionally, the input voltage (VIN) should be within the range of 1.71V to 3.6V.
  • To minimize noise and EMI, it is recommended to use a multi-layer PCB with a solid ground plane, keep the signal traces short and away from the power traces, and use decoupling capacitors close to the device.
  • The power sequencing for the STL26NM60N is critical. The recommended power-up sequence is to apply VCC first, followed by VIN, and then the input signals. The power-down sequence should be reversed.
  • The STL26NM60N is sensitive to electrostatic discharge (ESD). To prevent damage, handle the device in an ESD-protected environment, use ESD-protected tools, and ensure that the device is properly grounded during handling and assembly.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STL26NM60N Overview

Use the download button to access the STL26NM60N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STL26, or try a keyword search, such as Power Field-Effect Transistors
