STL33N65M2 - STMicroelectronics

Description: N-channel 650 V, 0.124 Ω typ., 20 A MDmesh™ M2 Power MOSFET in a PowerFLAT™ 8x8 HV package

Download STL33N65M2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

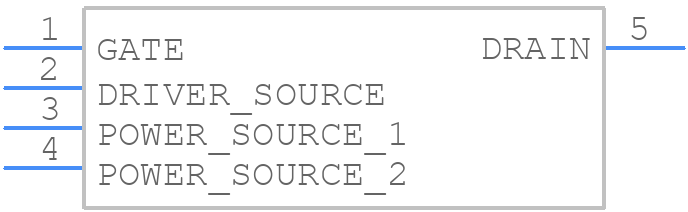

STL33N65M2 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STL33N65M2 - STMicroelectronics PCB footprint - Other - Other - PowerFLAT™ 8x8 HV_2022-2
click to zoom
3D Models
STL33N65M2 - STMicroelectronics - 3D model - Other - PowerFLAT™ 8x8 HV_2022-2
click to zoom

STL33N65M2 Details

  • Manufacturer Part Number:

    STL33N65M2

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer Package Code:

    PowerFLAT 8x8 HV

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Avalanche Energy Rating (Eas):

    600 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    650 V

  • Drain Current-Max (ID):

    20 A

  • Drain-source On Resistance-Max:

    0.154 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    2 pF

  • JESD-30 Code:

    S-PSSO-N4

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Elements:

    1

  • Number of Terminals:

    4

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    150 W

  • Pulsed Drain Current-Max (IDM):

    80 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

STL33N65M2 Frequently Asked Questions (FAQs)

  • The maximum junction temperature (Tj) of the STL33N65M2 is 175°C. However, it's recommended to keep the junction temperature below 150°C for reliable operation and to ensure a long lifespan.
  • To ensure proper cooling, it's essential to provide a good thermal path from the device to a heat sink or the PCB. Use a thermal interface material (TIM) between the device and the heat sink, and ensure the heat sink is properly attached to the PCB. Additionally, consider using a thermal pad or thermal tape to improve heat dissipation.
  • The recommended gate drive voltage for the STL33N65M2 is between 10V and 15V. However, it's essential to ensure the gate drive voltage is within the specified range to prevent damage to the device.
  • Yes, the STL33N65M2 is suitable for high-frequency switching applications up to 100 kHz. However, it's essential to consider the device's switching losses, gate charge, and parasitic inductances when designing the circuit.
  • To protect the STL33N65M2 from overvoltage and overcurrent, consider using a voltage clamp or a transient voltage suppressor (TVS) to limit the voltage across the device. Additionally, use a current sense resistor and a fuse or a current limiter to prevent overcurrent conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STL33N65M2 Overview

Use the download button to access the STL33N65M2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STL33, or try a keyword search, such as Power Field-Effect Transistors
