STL36DN6F7 - STMicroelectronics

Description: Dual N-channel 60 V, 23 mΩ typ., 33 A STripFET™ F7 Power MOSFET in a PowerFLAT™ 5x6 double island package

Download STL36DN6F7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

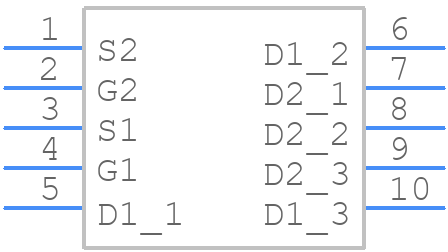

Symbol
STL36DN6F7 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STL36DN6F7 - STMicroelectronics PCB footprint - Other - Other - PowerFLAT 5x6 double island_2022
click to zoom
3D Models
STL36DN6F7 - STMicroelectronics - 3D model - Other - PowerFLAT 5x6 double island_2022
click to zoom

STL36DN6F7 Details

  • Manufacturer Part Number:

    STL36DN6F7

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5.55

  • Case Connection:

    DRAIN

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    36 A

  • Drain-source On Resistance-Max:

    0.027 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-F6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    144 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

STL36DN6F7 Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the device for airflow and heat dissipation.
  • Implement a robust thermal management system, including a heat sink, thermal interface material, and a cooling fan if necessary. Monitor the device's junction temperature (TJ) and ensure it stays within the recommended range (TJ ≤ 150°C).
  • Use a shielded enclosure, ensure proper grounding, and implement EMI filters on the input and output lines. Follow the recommended PCB layout and component placement guidelines to minimize radiation and susceptibility.
  • Enable the low-power mode (LPM) by setting the EN pin low. Ensure that the input voltage is within the recommended range (VIN ≤ 36V) and minimize the quiescent current by optimizing the external component values.
  • Monitor the output voltage (VOUT), output current (IOUT), and input voltage (VIN) for overvoltage, undervoltage, and overcurrent conditions. Implement a fault detection and protection circuit to prevent damage and ensure safe operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STL36DN6F7 Overview

Use the download button to access the STL36DN6F7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STL36, or try a keyword search, such as Power Field-Effect Transistors
