STL45N60DM6 - STMicroelectronics

Description: N-channel 600 V, 0.094 Ω typ., 25 A, MDmesh™ DM6 Power MOSFET in a PowerFLAT™ 8x8 HV package

Download STL45N60DM6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

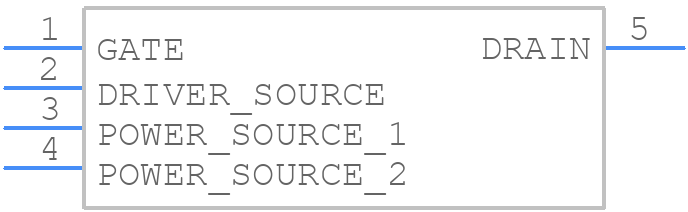

STL45N60DM6 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STL45N60DM6 - STMicroelectronics PCB footprint - Other - Other - STL45N60DM6
click to zoom
3D Models
STL45N60DM6 - STMicroelectronics - 3D model - Other - STL45N60DM6
click to zoom

STL45N60DM6 Details

  • Manufacturer Part Number:

    STL45N60DM6

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    14 Weeks

  • Date Of Intro:

    2019-01-28

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Avalanche Energy Rating (Eas):

    630 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    600 V

  • Drain Current-Max (ID):

    25 A

  • Drain-source On Resistance-Max:

    0.11 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    2 pF

  • JESD-30 Code:

    S-PSSO-N4

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Elements:

    1

  • Number of Terminals:

    4

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    160 W

  • Pulsed Drain Current-Max (IDM):

    95 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

STL45N60DM6 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the STL45N60DM6 is -40°C to 150°C.
  • To ensure the STL45N60DM6 is properly driven, use a gate driver with a high current capability and a low output impedance. Also, ensure the gate-source voltage is within the recommended range (typically 10-15V) and the gate resistance is minimized.
  • To minimize parasitic inductance and capacitance, use a compact PCB layout with short, wide traces for the power connections. Keep the gate and source connections as close as possible to the device, and use a solid ground plane to reduce inductance.
  • To protect the STL45N60DM6 from overvoltage and overcurrent conditions, use a voltage clamp or a transient voltage suppressor (TVS) to limit the voltage across the device. Also, implement overcurrent protection using a current sense resistor and a comparator or a dedicated overcurrent protection IC.
  • The recommended cooling method for the STL45N60DM6 is to use a heat sink with a thermal interface material (TIM) to improve heat transfer. Ensure the heat sink is properly mounted and the TIM is applied correctly to achieve optimal thermal performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STL45N60DM6 Overview

Use the download button to access the STL45N60DM6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STL45, or try a keyword search, such as Power Field-Effect Transistors
