STL76DN4LF7AG - STMicroelectronics

Description: Automotive-grade dual N-channel 40 V, 5 mΩ typ., 40 A STripFET™ F7 Power MOSFET in a PowerFLAT™ 5x6 DI

Download STL76DN4LF7AG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

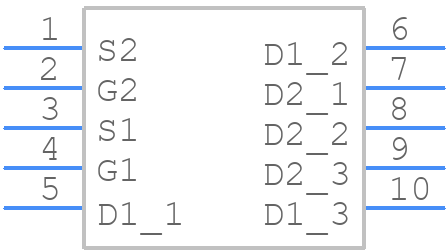

Symbol
STL76DN4LF7AG - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STL76DN4LF7AG - STMicroelectronics PCB footprint - Other - Other - PowerFLAT™ 5 x 6 double island
click to zoom
3D Models
STL76DN4LF7AG - STMicroelectronics - 3D model - Other - PowerFLAT™ 5 x 6 double island
click to zoom

STL76DN4LF7AG Details

  • Manufacturer Part Number:

    STL76DN4LF7AG

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Case Connection:

    DRAIN

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    40 A

  • Drain-source On Resistance-Max:

    0.012 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-F6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    160 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

STL76DN4LF7AG Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure optimal thermal performance.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a suitable thermal interface material, and ensure proper airflow around the device.
  • Exceeding the maximum junction temperature (Tj) rating can lead to reduced device lifespan, increased thermal resistance, and potentially catastrophic failure. It's crucial to ensure the device operates within the recommended temperature range.
  • To prevent electrostatic discharge (ESD) damage, handle the device with ESD-protective equipment, use an ESD wrist strap or mat, and follow proper assembly procedures to minimize the risk of ESD damage.
  • STMicroelectronics recommends following the JEDEC J-STD-020D.1 standard for soldering profiles, with a peak temperature of 260°C and a dwell time of 30-45 seconds to ensure reliable solder joints.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STL76DN4LF7AG Overview

Use the download button to access the STL76DN4LF7AG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STL76, or try a keyword search, such as Power Field-Effect Transistors
