STLUX385A - STMicroelectronics

Description: Digital controllers for lighting and power conversion applications with up to 6 programmable PWM generators, 96 MHz PLL, DALI

Download STLUX385A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

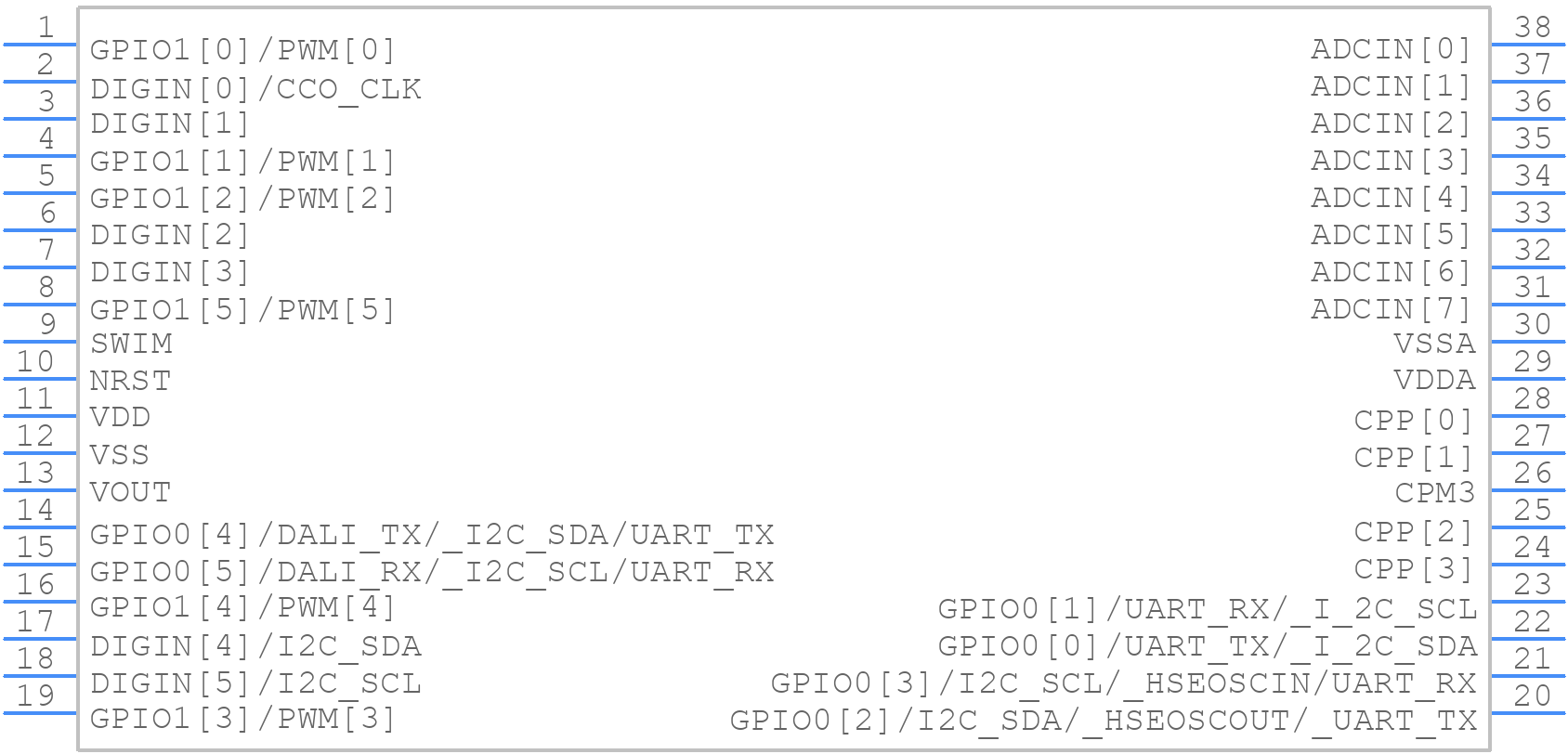

Symbol
STLUX385A - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STLUX385A - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP38 package mechanical data-
click to zoom
3D Models
STLUX385A - STMicroelectronics - 3D model - Small Outline Packages - TSSOP38 package mechanical data-
click to zoom

STLUX385A Details

  • Manufacturer Part Number:

    STLUX385A

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    STMicroelectronics

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    40

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR CIRCUIT

STLUX385A Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5323, which includes guidelines for component placement, thermal management, and routing to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The selection of external components such as resistors, capacitors, and inductors depends on the specific application and design requirements. STMicroelectronics provides a component selection guide in the application note AN5323, which includes recommendations for component values and types.
  • The maximum junction temperature (Tj) of the STLUX385A is 150°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 125°C for optimal reliability and performance.
  • The STLUX385A has a built-in overvoltage protection (OVP) feature that can be enabled by connecting the OVP pin to a voltage source. The OVP threshold can be adjusted by connecting a resistor divider network to the OVP pin. Refer to the application note AN5323 for more details.
  • The recommended input capacitor value for the STLUX385A depends on the input voltage and frequency. A general guideline is to use a capacitor with a value between 1uF to 10uF, with a voltage rating that matches the input voltage. Refer to the application note AN5323 for more specific recommendations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STLUX385A Overview

Use the download button to access the STLUX385A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STLUX, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
