STLUX385ATR - STMicroelectronics

Description: Digital controllers for lighting and power conversion applications with up to 6 programmable PWM generators, 96 MHz PLL

Download STLUX385ATR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

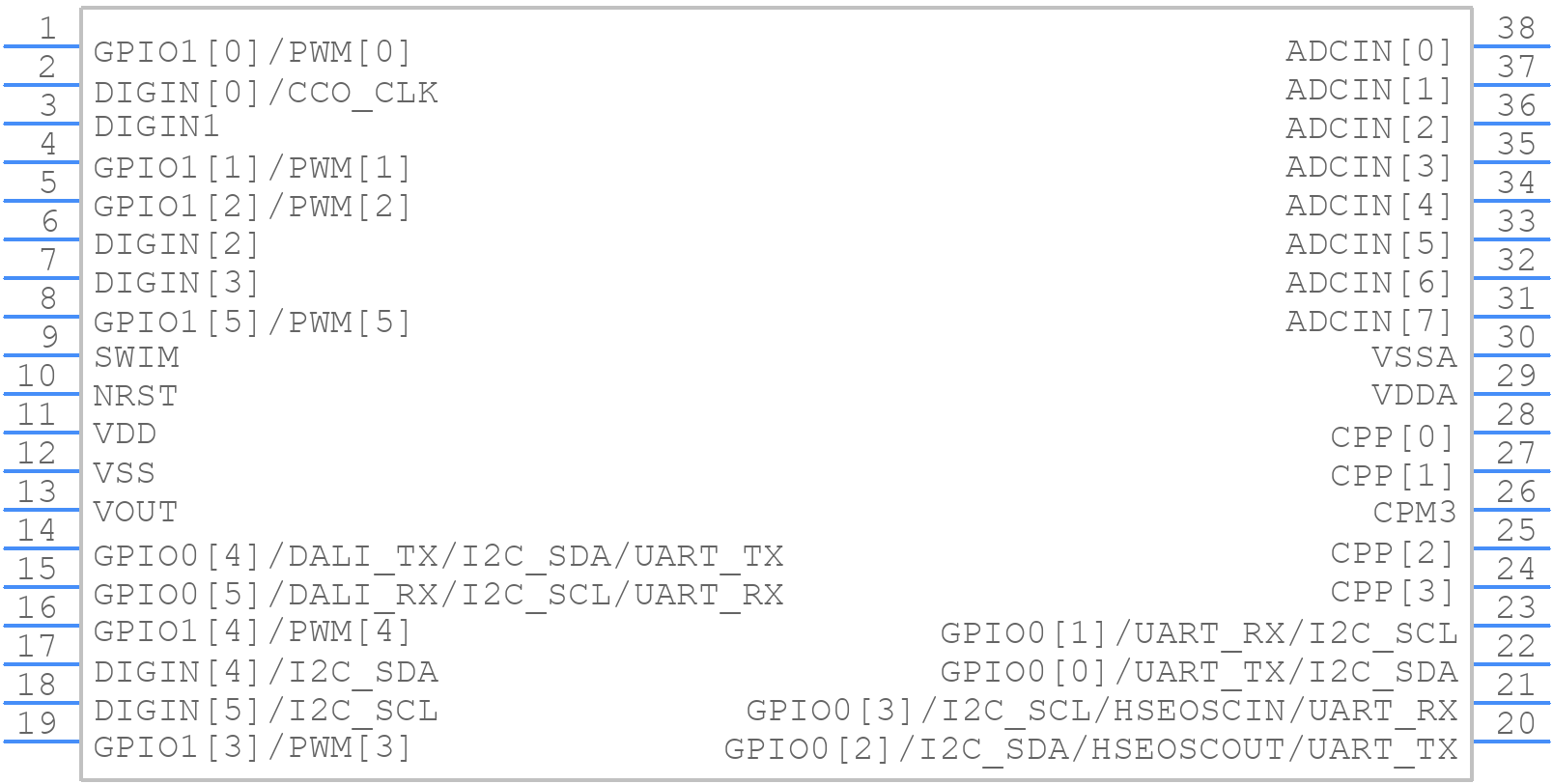

STLUX385ATR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STLUX385ATR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP38
click to zoom
3D Models
STLUX385ATR - STMicroelectronics - 3D model - Small Outline Packages - TSSOP38
click to zoom

STLUX385ATR Details

  • Manufacturer Part Number:

    STLUX385ATR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    STMicroelectronics

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    40

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR CIRCUIT

STLUX385ATR Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 2-layer PCB with a thermal pad connected to a large copper area on the bottom layer to dissipate heat efficiently.
  • Ensure proper thermal management, use a heat sink if necessary, and follow the recommended operating conditions and derating guidelines in the datasheet.
  • The maximum allowed voltage on the enable pin (EN) is 6V, exceeding this may cause damage to the device.
  • Yes, the STLUX385ATR is suitable for high-frequency switching applications up to 2 MHz, but ensure proper PCB layout and decoupling to minimize EMI and noise.
  • Implement overcurrent protection using a fuse or a current-sensing resistor, and ensure the device is operated within the recommended current limits.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STLUX385ATR Overview

Use the download button to access the STLUX385ATR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STLUX, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
