STM32F031K6T7TR - STMicroelectronics

Description: ARM®-based 32-bit MCU with up to 32 Kbyte Flash, 9 timers, ADC and communication interfaces, 2.0 - 3.6 V

Download STM32F031K6T7TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

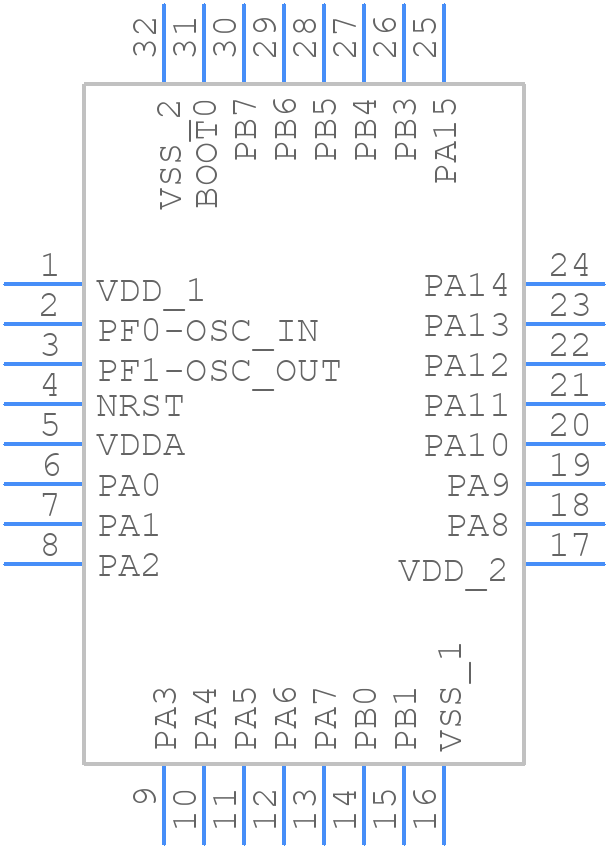

STM32F031K6T7TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM32F031K6T7TR - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP32
click to zoom
3D Models
STM32F031K6T7TR - STMicroelectronics - 3D model - Quad Flat Packages - LQFP32
click to zoom

STM32F031K6T7TR Details

  • Manufacturer Part Number:

    STM32F031K6T7TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-32

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    NO

  • Clock Frequency-Max:

    32 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • JESD-30 Code:

    S-PQFP-G32

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    25

  • Number of Terminals:

    32

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • ROM (words):

    32768

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.6 mm

  • Speed:

    48 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

STM32F031K6T7TR Frequently Asked Questions (FAQs)

  • The maximum clock frequency of the STM32F031K6T7TR is 48 MHz, which can be achieved using the internal high-speed oscillator (HSI) or an external clock source.
  • The clock settings for the STM32F031K6T7TR can be configured using the Clock Control Register (RCC) and the Power Control Register (PWR). The RCC register is used to select the clock source, while the PWR register is used to configure the voltage regulator and power modes.
  • The BOOT0 and BOOT1 pins on the STM32F031K6T7TR are used to select the boot mode of the device. BOOT0 is used to select between the internal flash memory and an external memory, while BOOT1 is used to select between the boot loader and the user application.
  • The STM32F031K6T7TR can be programmed using a serial wire debug (SWD) interface using a debugger such as the ST-Link or a third-party debugger. The SWD interface is connected to the SWDIO and SWCLK pins on the device, and the debugger is connected to the host computer using a USB interface.
  • The power consumption of the STM32F031K6T7TR varies depending on the power mode. In Run mode, the power consumption is typically around 350 μA/MHz, while in Sleep mode, it is around 10 μA. In Stop mode, the power consumption is around 5 μA, and in Standby mode, it is around 2 μA.
