STM32F048C6U6 - STMicroelectronics

Description: STMicroelectronics STM32F048C6U6, 32bit ARM Cortex M0 Microcontroller, STM32, 48MHz, 32 kB Flash, 48-Pin UFQFPN

Download STM32F048C6U6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

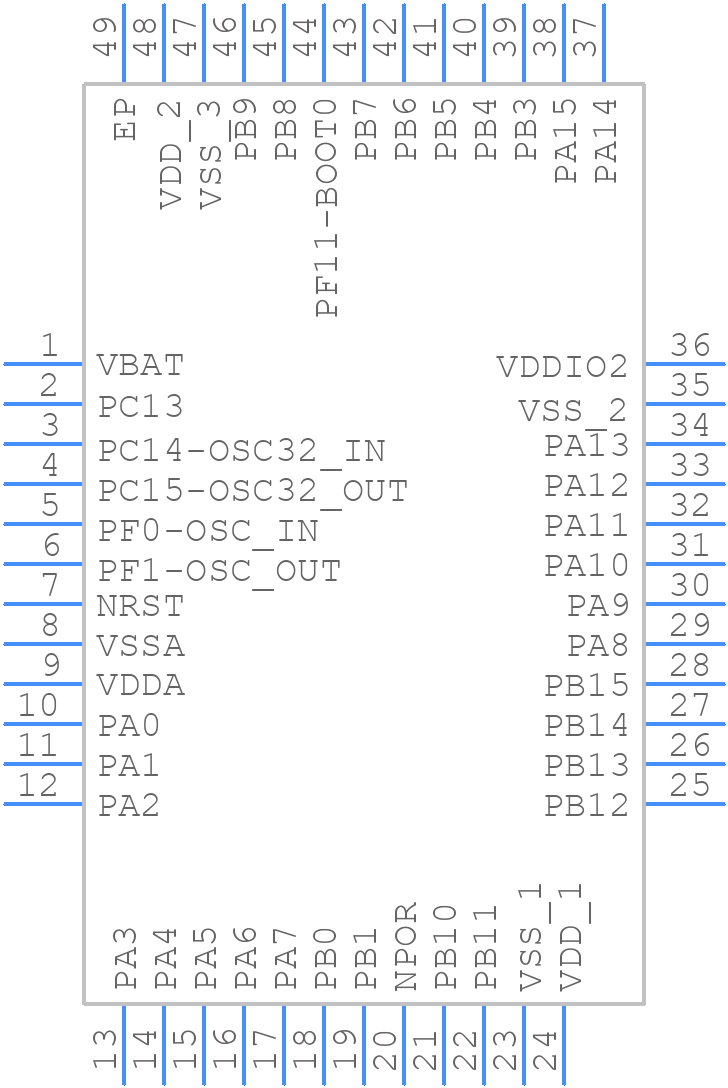

STM32F048C6U6 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM32F048C6U6 - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - . UFQFPN48 - 48-lea
click to zoom
3D Models
STM32F048C6U6 - STMicroelectronics - 3D model - Quad Flat No-Lead - . UFQFPN48 - 48-lea
click to zoom

STM32F048C6U6 Details

  • Manufacturer Part Number:

    STM32F048C6U6

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Has ADC:

    YES

  • Bit Size:

    32

  • CPU Family:

    CORTEX-M0

  • Clock Frequency-Max:

    32 MHz

  • DMA Channels:

    YES

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    27

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.28SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    6144

  • ROM (words):

    32768

  • ROM Programmability:

    FLASH

  • Speed:

    48 MHz

  • Supply Current-Max:

    20.9 mA

  • Supply Voltage-Max:

    1.95 V

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

STM32F048C6U6 Frequently Asked Questions (FAQs)

  • The maximum clock frequency of the STM32F048C6U6 is 48 MHz, which can be achieved using the internal high-speed oscillator (HSI) or an external clock source.
  • The clock settings for the STM32F048C6U6 can be configured using the Clock Control Register (RCC) and the Power Control Register (PWR). The RCC register is used to select the clock source, while the PWR register is used to configure the voltage regulator and power modes.
  • The BOOT0 and BOOT1 pins on the STM32F048C6U6 are used to select the boot mode of the device. BOOT0 is used to select between the internal flash memory and an external memory, while BOOT1 is used to select between the boot loader and the user application.
  • The STM32F048C6U6 can be programmed using a serial wire debug (SWD) interface using a debugger such as ST-Link or a third-party debugger. The SWD interface is connected to the debugger, and the device is powered on. The debugger then communicates with the device using the SWD protocol to program the flash memory.
  • The power consumption of the STM32F048C6U6 varies depending on the power mode. In Run mode, the power consumption is typically around 350 μA/MHz. In Sleep mode, the power consumption is around 10 μA, and in Stop mode, the power consumption is around 2 μA. The power consumption can be further reduced by using the Low-Power Run mode and the Low-Power Sleep mode.
