Part Image

STM32F050C4T6 - STMicroelectronics

Description: STM32F050C4T6, 32 bit ARM Cortex M0 Microcontroller 48MHz 16 kB Flash, 4 kB RAM, I2C 48-Pin LQFP

Download STM32F050C4T6 Model

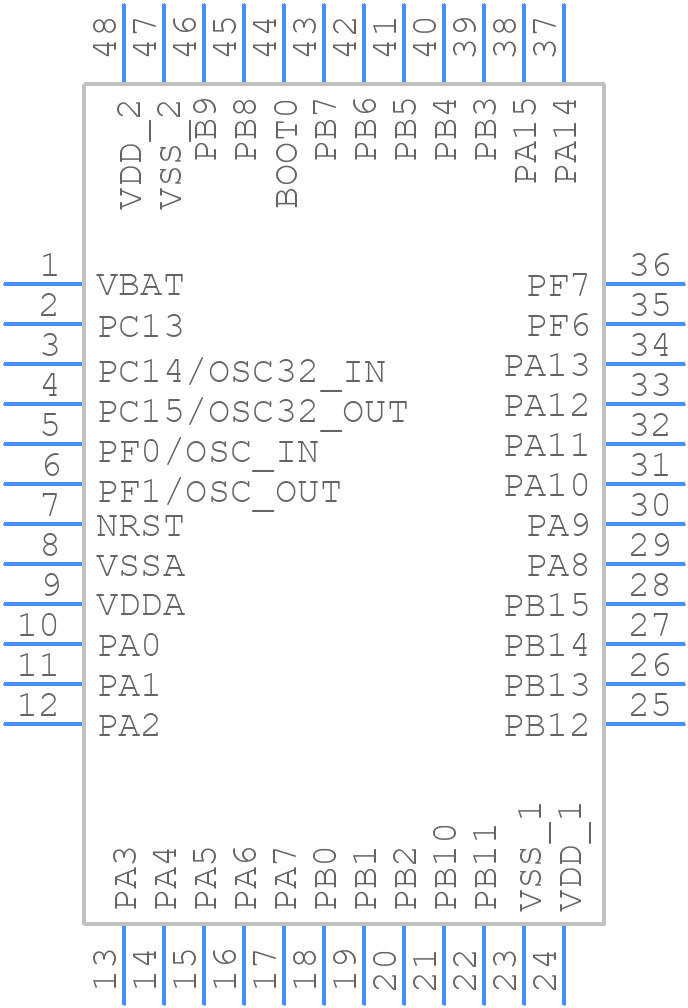

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
STM32F050C4T6 - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - 48-LQFP (7x7)
click to zoom
3D Models
STM32F050C4T6 - STMicroelectronics  - 3D model - Quad Flat Packages - 48-LQFP (7x7)
click to zoom

STM32F050C4T6 Details

  • Manufacturer Part Number:

    STM32F050C4T6

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LQFP-48

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Has ADC:

    YES

  • Additional Feature:

    INTERNAL 3-CH ADC IS ALSO AVAILABLE

  • Bit Size:

    32

  • Clock Frequency-Max:

    32 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • JESD-30 Code:

    S-PQFP-G48

  • Length:

    7 mm

  • Number of I/O Lines:

    39

  • Number of Terminals:

    48

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • RAM (bytes):

    4096

  • ROM (words):

    16384

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.6 mm

  • Speed:

    48 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM32F050C4T6 Overview

Use the download button to access the STM32F050C4T6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM32, or try a keyword search, such as Microcontrollers

Parts related to STM32F050C4T6

Showing 0 results

STM32F050C4T6 Alternates

Showing results

Image Part Number Model
Part Image STM32F051C8U7TR STMicroelectronics

Mainstream Arm Cortex-M0 Access line MCU with 64 Kbytes of Flash memory, 48 MHz CPU, motor control and CEC functions

Part Image STM32F051C8U6XXX STMicroelectronics

32-BIT, FLASH, 48MHz, RISC MICROCONTROLLER, QCC48, 7 X 7 MM, 0.50 MM PITCH, ROHS COMPLIANT, UFQFPN-48

Part Image STM32F050C4T6AXXX STMicroelectronics

RISC MICROCONTROLLER

Part Image STM32F050C4T7AXXX STMicroelectronics

RISC MICROCONTROLLER

Part Image STM32F050C4T6XXX STMicroelectronics

RISC MICROCONTROLLER

For a full list of alternate parts for STM32F050C4T6, check out Findchips.com
