STM32F071CBU7TR - STMicroelectronics

Description: Arm®-based 32-bit MCU, up to 128 KB Flash, 12 timers, ADC, DAC and communication interfaces, 2.0 - 3.6 V

Download STM32F071CBU7TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

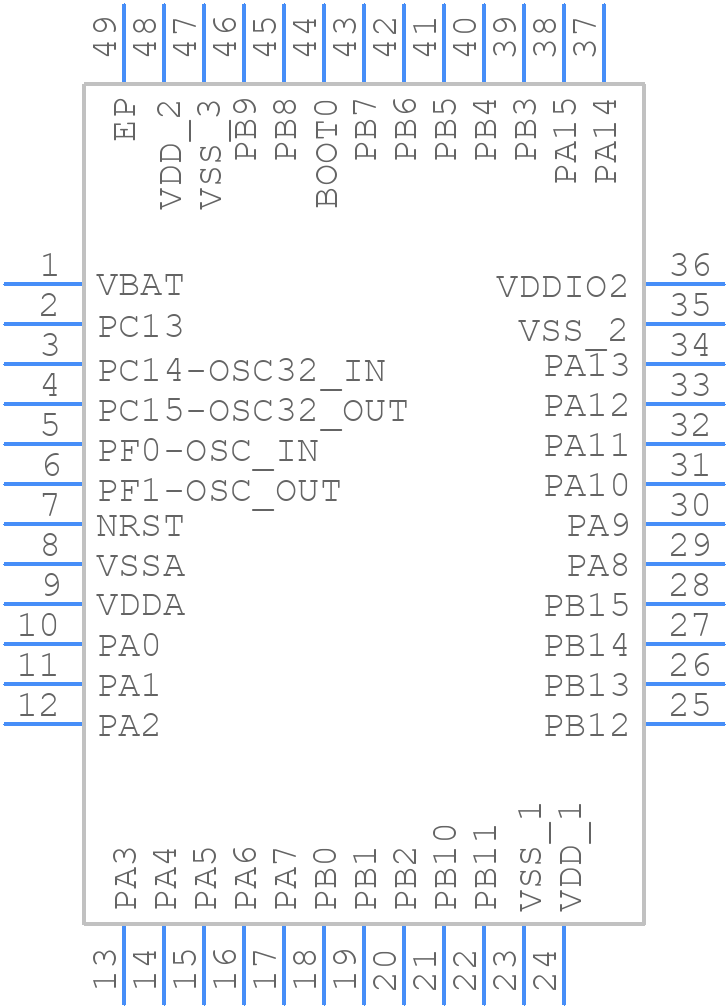

STM32F071CBU7TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM32F071CBU7TR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - . UFQFPN48 - 48-lea
click to zoom
3D Models
STM32F071CBU7TR - STMicroelectronics - 3D model - Quad Flat No-Lead - . UFQFPN48 - 48-lea
click to zoom

STM32F071CBU7TR Details

  • Manufacturer Part Number:

    STM32F071CBU7TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    UFQFPN-48

  • Country Of Origin:

    Philippines

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    32 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    YES

  • JESD-30 Code:

    S-XQCC-N48

  • Length:

    7 mm

  • Number of I/O Lines:

    37

  • Number of Terminals:

    48

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • RAM (bytes):

    16384

  • ROM (words):

    131072

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    0.65 mm

  • Speed:

    48 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3.3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

STM32F071CBU7TR Frequently Asked Questions (FAQs)

  • The maximum clock frequency of the STM32F071CBU7TR is 48 MHz, which can be achieved using an external clock source or the internal high-speed internal oscillator (HSI).
  • The clock settings for the STM32F071CBU7TR can be configured using the Clock Configuration Tool (CCT) provided by STMicroelectronics, or by writing code to configure the clock registers directly.
  • The power consumption of the STM32F071CBU7TR depends on the operating mode and clock frequency. In low-power mode, the current consumption can be as low as 350 μA/MHz, while in high-performance mode, it can be up to 350 mA.
  • The STM32F071CBU7TR can be programmed using a variety of tools, including the STMicroelectronics STM32CubeMX software, Keil µVision, IAR Embedded Workbench, and GCC-based toolchains.
  • The STM32F071CBU7TR is a member of the STM32F0 series, which is a family of 32-bit microcontrollers based on the ARM Cortex-M0 core. The main differences between the STM32F071CBU7TR and other STM32F0 series microcontrollers are the flash memory size, SRAM size, and peripheral set.
