STM32F107VCH6 - STMicroelectronics

STM32F107VCH6 Details

• Manufacturer Part Number:

  STM32F107VCH6

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

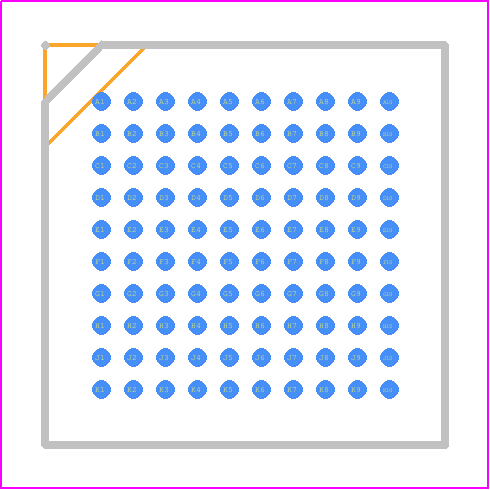

• Part Package Code:

  BGA

• Package Description:

  BGA-100

• Pin Count:

  100

• Country Of Origin:

  Mainland China

• ECCN Code:

  3A991.A.2

• HTS Code:

  8542.31.00.25

• Factory Lead Time:

  13 Weeks

• Manufacturer:

  STMicroelectronics

• YTEOL:

  9

• Has ADC:

  YES

• Bit Size:

  32

• Boundary Scan:

  YES

• CPU Family:

  STM32

• Clock Frequency-Max:

  25 MHz

• DAC Channels:

  YES

• DMA Channels:

  YES

• Format:

  FIXED POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  S-PBGA-B100

• JESD-609 Code:

  e3

• Length:

  10 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  3

• Number of DMA Channels:

  12

• Number of External Interrupts:

  16

• Number of I/O Lines:

  80

• Number of Terminals:

  100

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFBGA

• Package Equivalence Code:

  BGA100,10X10,32

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• RAM (bytes):

  65536

• ROM (words):

  262144

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.7 mm

• Speed:

  72 MHz

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3.3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  10 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
