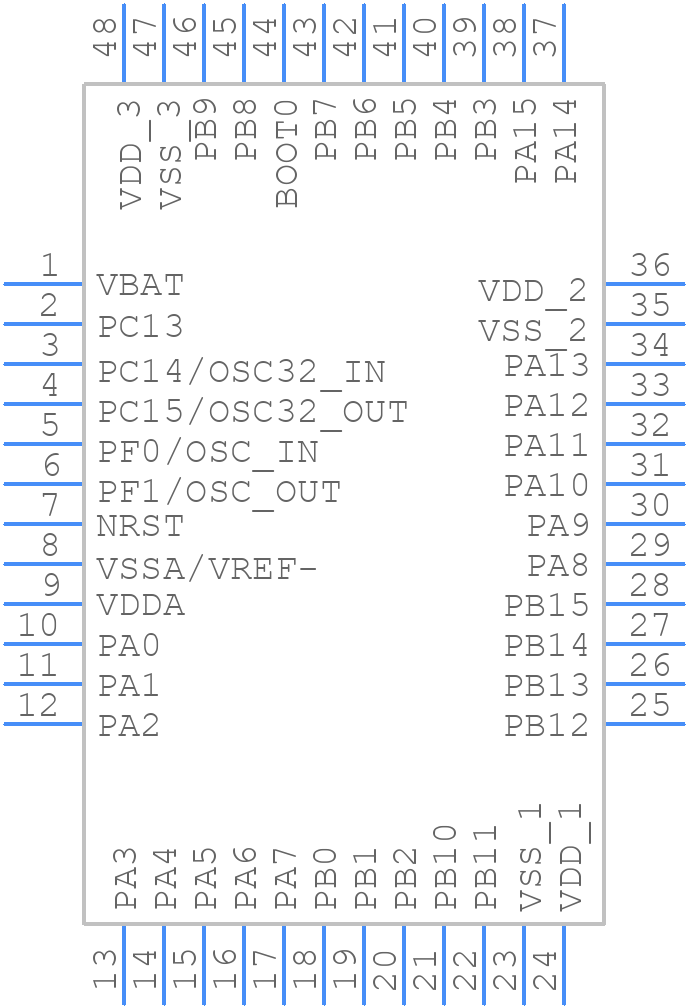

STM32F302CBT6 - STMicroelectronics

STM32F302CBT6 Details

• Manufacturer Part Number:

  STM32F302CBT6

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  7 X 7 MM, ROHS COMPLIANT, LQFP-48

• Country Of Origin:

  Mainland China

• ECCN Code:

  3A991.A.2

• HTS Code:

  8542.31.00.25

• Factory Lead Time:

  13 Weeks

• Manufacturer:

  STMicroelectronics

• YTEOL:

  9

• Has ADC:

  YES

• Bit Size:

  32

• Boundary Scan:

  YES

• CPU Family:

  CORTEX-M4F

• Clock Frequency-Max:

  32 MHz

• DAC Channels:

  YES

• DMA Channels:

  YES

• JESD-30 Code:

  S-PQFP-G48

• JESD-609 Code:

  e3

• Length:

  7 mm

• Moisture Sensitivity Level:

  3

• Number of I/O Lines:

  37

• Number of Terminals:

  48

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFQFP

• Package Equivalence Code:

  QFP48,.35SQ,20

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• RAM (bytes):

  24576

• ROM (words):

  131072

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.6 mm

• Speed:

  72 MHz

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3.3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  7 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
