STM32F303RDT6TR - STMicroelectronics

Description: Mainstream Mixed signals MCUs Arm Cortex-M4 core with DSP and FPU, 384 Kbytes of Flash memory, 72 MHz CPU, MPU, CCM, 12-bit ADC 5 MSPS, PGA, comparators

Download STM32F303RDT6TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STM32F303RDT6TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

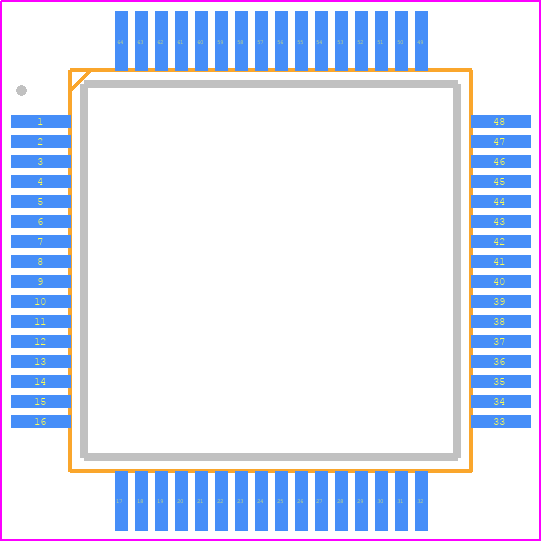

STM32F303RDT6TR - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP 64
click to zoom
3D Models
STM32F303RDT6TR - STMicroelectronics - 3D model - Quad Flat Packages - LQFP 64
click to zoom

STM32F303RDT6TR Details

  • Manufacturer Part Number:

    STM32F303RDT6TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Has ADC:

    YES

  • Address Bus Width:

    24

  • Bit Size:

    32

  • CPU Family:

    CORTEX-M4F

  • Clock Frequency-Max:

    32 MHz

  • DMA Channels:

    YES

  • External Data Bus Width:

    32

  • JESD-30 Code:

    S-PQFP-G64

  • Length:

    10 mm

  • Number of I/O Lines:

    51

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP64,.47SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Packing Method:

    TR

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    65536

  • ROM (words):

    393216

  • ROM Programmability:

    FLASH

  • Speed:

    72 MHz

  • Supply Current-Max:

    76.9 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

STM32F303RDT6TR Frequently Asked Questions (FAQs)

  • The maximum clock frequency of the STM32F303RDT6TR is 72 MHz, but it can be overclocked to 80 MHz with some limitations.
  • The clock settings for the STM32F303RDT6TR can be configured using the Clock Control Register (RCC) and the Power Control Register (PWR). The RCC register is used to select the clock source, while the PWR register is used to control the voltage regulator and power modes.
  • The BOOT0 and BOOT1 pins on the STM32F303RDT6TR are used to select the boot mode of the microcontroller. BOOT0 is used to select between the internal flash memory and an external memory, while BOOT1 is used to select between the internal flash memory and a system memory.
  • The DMA controller on the STM32F303RDT6TR can be used to transfer data between peripherals and memory without involving the CPU. The DMA controller is configured using the DMA_SxCR (Stream x Configuration Register) and the DMA_SxNDTR (Stream x Number of Data Register).
  • The NVIC on the STM32F303RDT6TR is used to handle interrupts generated by peripherals. It allows the microcontroller to prioritize and handle multiple interrupt sources efficiently.
