STM32F313CCT6 - STMicroelectronics

Description: ARM™Cortex-M4 32b MCU+FPU, up to 256KB Flash+48KB SRAM 4 ADCs, 2 DAC ch., 7 comp., 4 PGA, timers, 1.8 V operation

Download STM32F313CCT6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

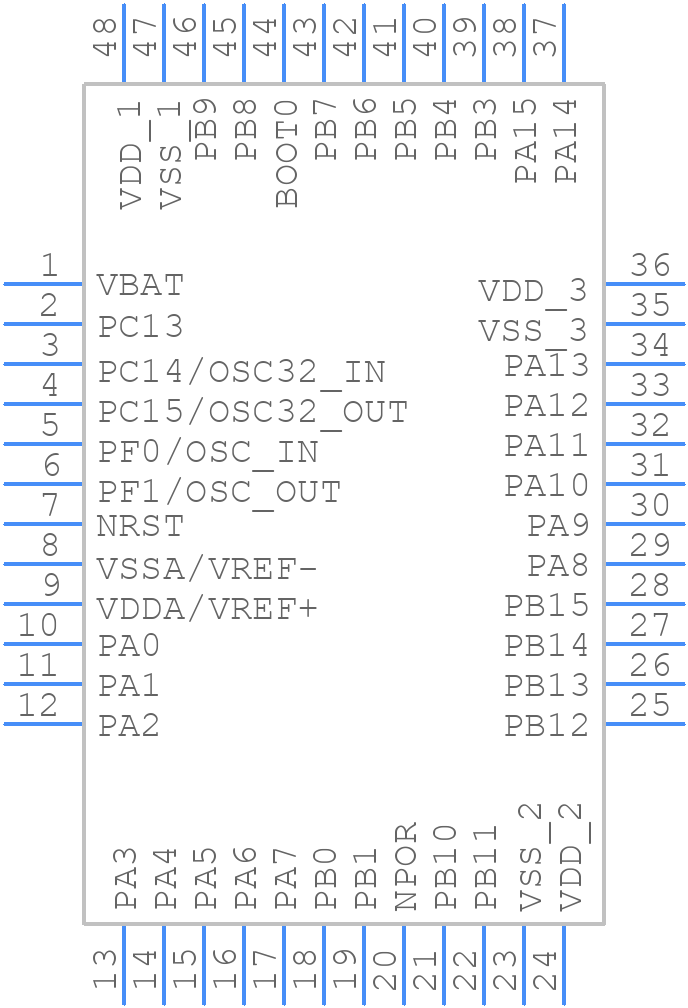

STM32F313CCT6 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM32F313CCT6 - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - 48-LQFP (7x7)
click to zoom
3D Models
STM32F313CCT6 - STMicroelectronics - 3D model - Quad Flat Packages - 48-LQFP (7x7)
click to zoom

STM32F313CCT6 Details

  • Manufacturer Part Number:

    STM32F313CCT6

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8542.31.00.25

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Bit Size:

    32

  • CPU Family:

    CORTEX-M4F

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    40960

  • ROM (words):

    262144

  • ROM Programmability:

    FLASH

  • Speed:

    72 MHz

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

STM32F313CCT6 Frequently Asked Questions (FAQs)

  • The maximum clock frequency of the STM32F313CCT6 is 72 MHz, but it can be overclocked to 80 MHz with some limitations.
  • The clock settings can be configured using the Clock Configuration Tool (CCT) in STM32CubeMX or by manually setting the registers in the RCC (Reset and Clock Control) peripheral.
  • The main difference is that the STM32F313CCT6 has a higher maximum clock frequency (72 MHz vs 64 MHz) and more flash memory (256 KB vs 128 KB) compared to the STM32F303CCT6.
  • The DMA controller can be used to transfer data between peripherals and memory without CPU intervention. This can be done by configuring the DMA channels, setting the transfer parameters, and enabling the DMA transfer.
  • The power consumption of the STM32F313CCT6 depends on the clock frequency, voltage, and operating mode. In low-power mode, the current consumption can be as low as 2.5 mA/MHz, while in high-performance mode, it can be up to 350 mA.
