STM32F334K6T7 - STMicroelectronics

Description: Arm®Cortex®-M4 32b MCU+FPU,up to 64KB Flash,16KB SRAM, 2 ADCs,3 DACs,3 comp.,op-amp, 217ps 10-ch (HRTIM1)

Download STM32F334K6T7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

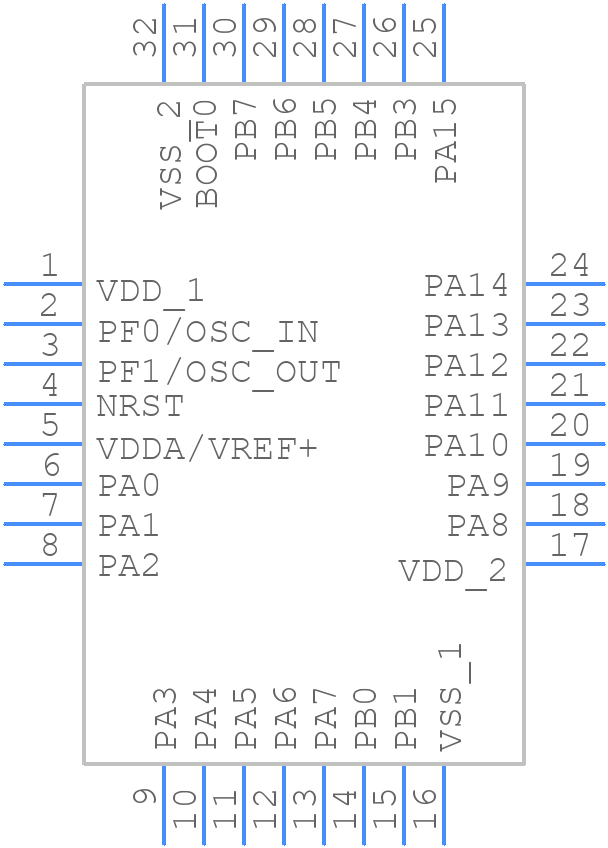

STM32F334K6T7 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM32F334K6T7 - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP - 32-pin, 7 x 7 mm
click to zoom
3D Models
STM32F334K6T7 - STMicroelectronics - 3D model - Quad Flat Packages - LQFP - 32-pin, 7 x 7 mm
click to zoom

STM32F334K6T7 Details

  • Manufacturer Part Number:

    STM32F334K6T7

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Has ADC:

    YES

  • Bit Size:

    32

  • Clock Frequency-Max:

    32 MHz

  • DMA Channels:

    YES

  • Length:

    7 mm

  • Number of I/O Lines:

    25

  • Number of Terminals:

    32

  • PWM Channels:

    YES

  • Package Code:

    LQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Speed:

    72 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

STM32F334K6T7 Frequently Asked Questions (FAQs)

  • The maximum clock frequency of the STM32F334K6T7 is 72 MHz, but it can be overclocked to 80 MHz with some limitations.
  • The clock settings for the STM32F334K6T7 can be configured using the Clock Configuration Tool (CCT) provided by STMicroelectronics or by manually setting the registers in the RCC (Reset and Clock Control) peripheral.
  • The main difference between the STM32F334K6T7 and the STM32F334R8T7 is the package type. The STM32F334K6T7 comes in a 32-pin LQFP package, while the STM32F334R8T7 comes in a 64-pin LQFP package. The R8 variant has more pins available for peripherals and GPIOs.
  • The ADC on the STM32F334K6T7 can be used by configuring the ADC peripheral, selecting the desired channels, and setting the sampling rate. The ADC can be triggered by a timer or software. The ADC values can be read using the ADC_DR register.
  • No, the STM32F334K6T7 is not 5V tolerant. The recommended power supply voltage is 2.0V to 3.6V. Using a 5V power supply can damage the device.
