STM32F358CCT6 - STMicroelectronics

Description: ARM®-based Cortex®-M4 32b MCU+FPU, up to 256KB Flash+ 48KB SRAM, 4 ADCs, 2 DAC ch., 7 comp., 4 PGA, timers, 1.8 V

Download STM32F358CCT6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

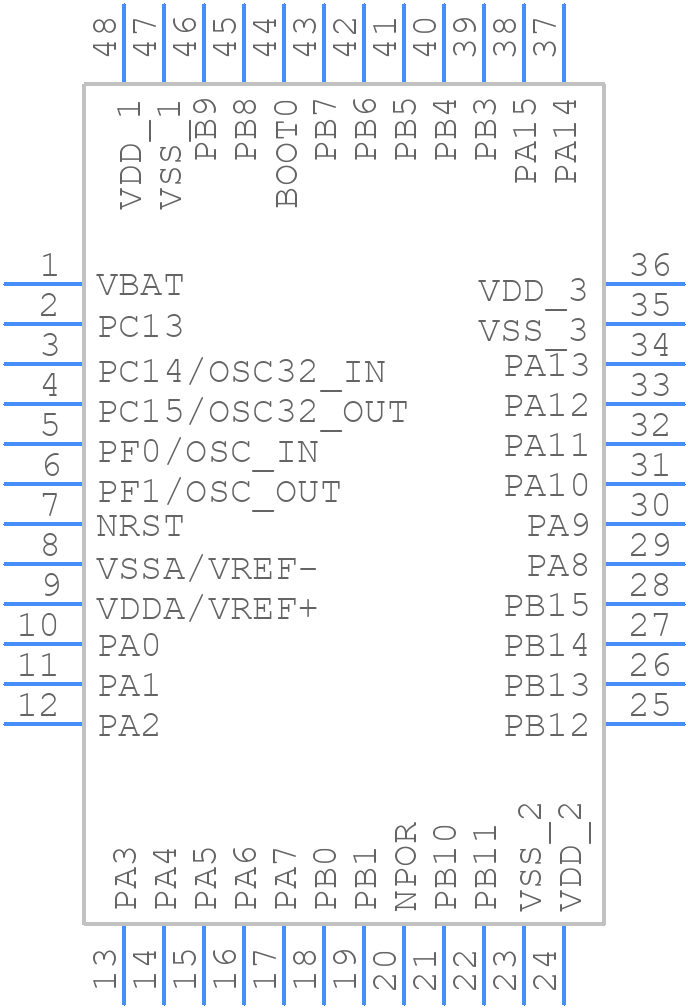

STM32F358CCT6 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM32F358CCT6 - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - 48-LEAD LQFP
click to zoom
3D Models
STM32F358CCT6 - STMicroelectronics - 3D model - Quad Flat Packages - 48-LEAD LQFP
click to zoom

STM32F358CCT6 Details

  • Manufacturer Part Number:

    STM32F358CCT6

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer Package Code:

    LQFP 48 7x7x1.4

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Has ADC:

    YES

  • Bit Size:

    32

  • Clock Frequency-Max:

    32 MHz

  • DMA Channels:

    YES

  • Length:

    7 mm

  • Number of I/O Lines:

    36

  • Number of Terminals:

    48

  • PWM Channels:

    YES

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Speed:

    72 MHz

  • Supply Voltage-Max:

    1.95 V

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

STM32F358CCT6 Frequently Asked Questions (FAQs)

  • The maximum clock frequency of the STM32F358CCT6 is 72 MHz, but it can be overclocked to 80 MHz with some limitations.
  • The clock settings for the STM32F358CCT6 can be configured using the Clock Configuration Tool (CCT) in the STM32CubeMX software or by writing code to configure the RCC (Reset and Clock Control) registers.
  • The STM32F358CCT6 is a microcontroller chip, while the STM32F3DISCOVERY is a development board that features the STM32F303VC microcontroller chip. The STM32F358CCT6 is a more advanced chip with more features and peripherals, but it requires a custom PCB design, whereas the STM32F3DISCOVERY is a ready-to-use board with a built-in debugger and peripherals.
  • No, the STM32F358CCT6 is a 3.3V device and should not be powered with 5V. The maximum voltage rating for the VDD pin is 3.6V, and exceeding this voltage can damage the device.
  • The STM32F358CCT6 can be programmed using a variety of tools, including the STM32CubeProgrammer, Keil µVision, IAR Embedded Workbench, and the GNU ARM Embedded Toolchain. The device can be programmed via the SWD (Serial Wire Debug) interface or the USART (Universal Synchronous Asynchronous Receiver Transmitter) interface.
