STM32F401CBY6TT - STMicroelectronics

Description: ARM Microcontrollers - MCU 16/32-BITS MICROS

Download STM32F401CBY6TT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

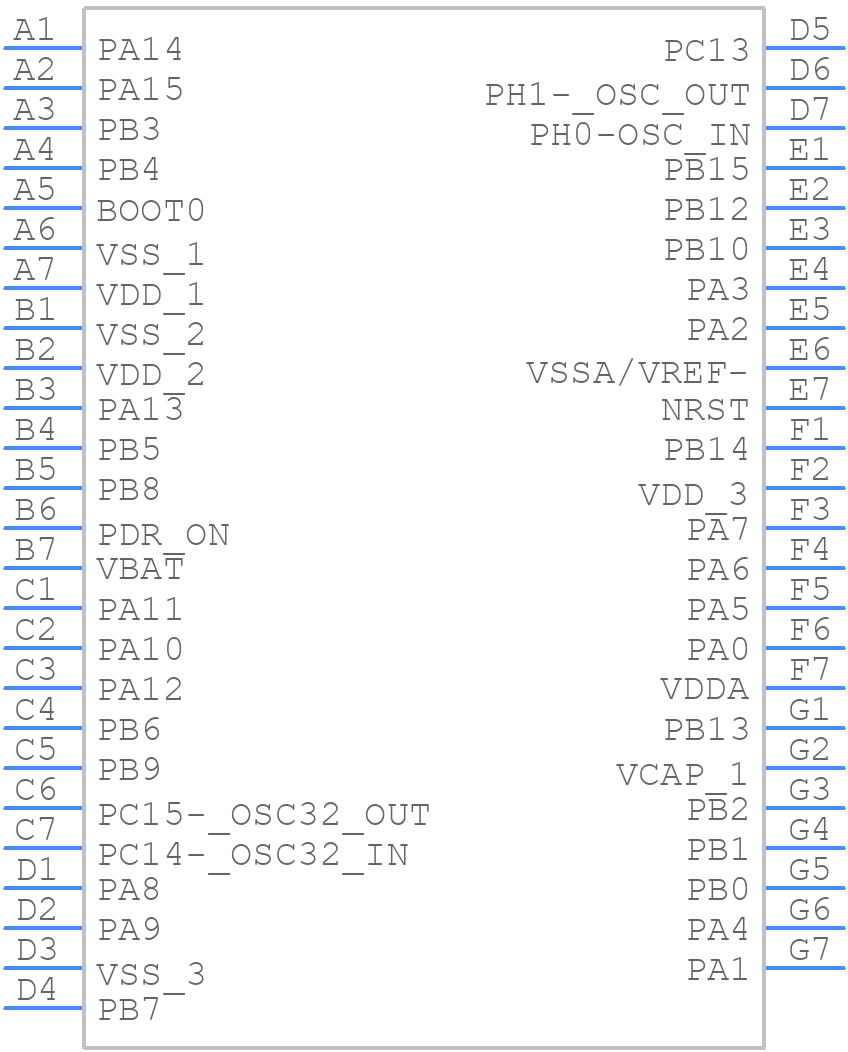

STM32F401CBY6TT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM32F401CBY6TT - STMicroelectronics PCB footprint - BGA - BGA - WLCSP49
click to zoom
3D Models
STM32F401CBY6TT - STMicroelectronics - 3D model - BGA - WLCSP49
click to zoom

STM32F401CBY6TT Details

  • Manufacturer Part Number:

    STM32F401CBY6TT

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8.28

  • Has ADC:

    YES

  • Bit Size:

    32

  • Clock Frequency-Max:

    26 MHz

  • DMA Channels:

    YES

  • Length:

    2.965 mm

  • Number of I/O Lines:

    36

  • Number of Terminals:

    49

  • PWM Channels:

    YES

  • Package Code:

    VFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Speed:

    84 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    2.965 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

STM32F401CBY6TT Frequently Asked Questions (FAQs)

  • The maximum clock frequency of the STM32F401CBY6TT is 84 MHz, but it can be overclocked to 100 MHz with some limitations.
  • The clock settings for the STM32F401CBY6TT can be configured using the Clock Configuration Tool (CCT) software provided by STMicroelectronics or by manually setting the registers according to the datasheet.
  • The main difference between the STM32F401CBY6TT and the STM32F401RET6 is the package type. The STM32F401CBY6TT is a LQFP64 package, while the STM32F401RET6 is a LQFP48 package. The RET6 has a smaller package and fewer pins, but is otherwise identical in terms of functionality.
  • The DMA controller on the STM32F401CBY6TT can be used to transfer data between peripherals and memory without CPU intervention. This is done by configuring the DMA channel, setting the transfer parameters, and enabling the DMA transfer.
  • The power consumption of the STM32F401CBY6TT depends on the clock frequency, voltage, and operating mode. In low-power mode, the current consumption can be as low as 350 μA/MHz, while in dynamic mode, it can be up to 350 mA at 84 MHz.
