STM32F401CCY6TR - STMicroelectronics

Description: 32-Bit MCU Cortex-M4 256KB 1.8V WLCSP49 STMicroelectronics STM32F401CCY6TR, 32bit ARM Cortex M4 MCU, 84MHz, 256 kB Flash, 49-Pin WLCSP

Download STM32F401CCY6TR Model

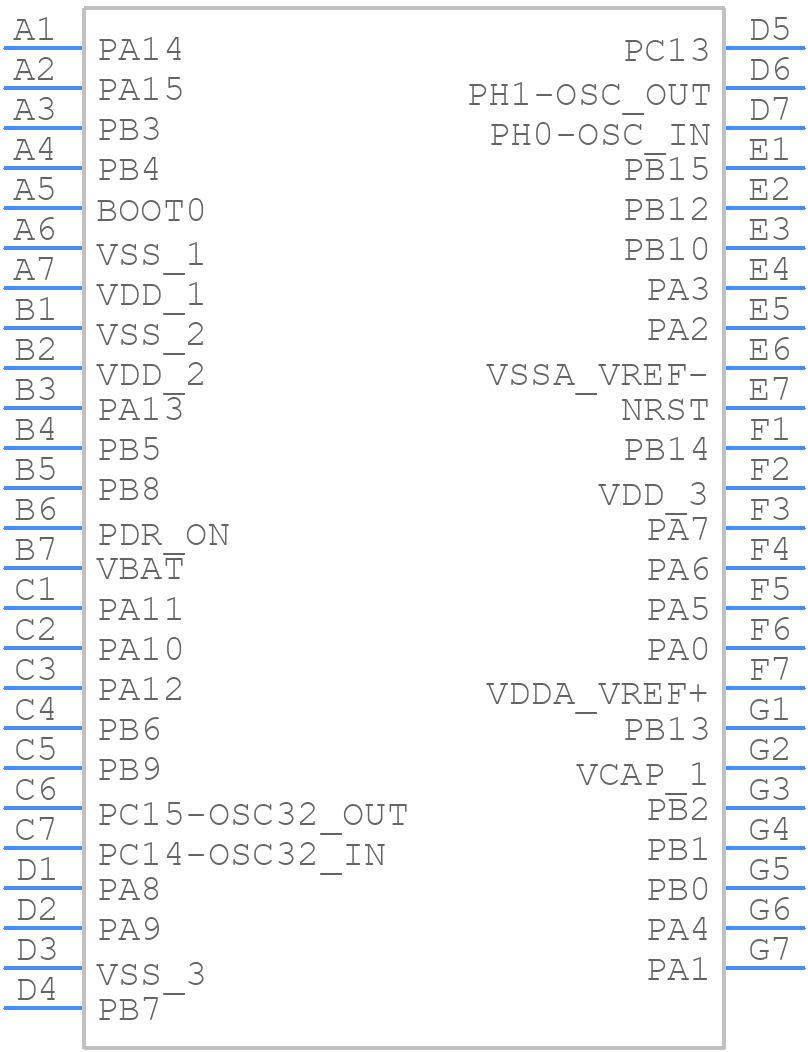

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
STM32F401CCY6TR - STMicroelectronics PCB footprint - BGA - BGA - . WLCSP49 - 49-ball, 2.965 x 2.965 mm, 0.4 mm
click to zoom
3D Models
STM32F401CCY6TR - STMicroelectronics  - 3D model - BGA - . WLCSP49 - 49-ball, 2.965 x 2.965 mm, 0.4 mm
click to zoom

STM32F401CCY6TR Details

  • Manufacturer Part Number:

    STM32F401CCY6TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    VFBGA, BGA49,7X7,16

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Has ADC:

    YES

  • Bit Size:

    32

  • CPU Family:

    CORTEX-M4F

  • Clock Frequency-Max:

    26 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • JESD-30 Code:

    S-PBGA-B49

  • Length:

    2.965 mm

  • Number of I/O Lines:

    36

  • Number of Terminals:

    49

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA49,7X7,16

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    65536

  • ROM (words):

    262144

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    0.585 mm

  • Speed:

    84 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3.3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    2.965 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC
