STM32F410CBT6 - STMicroelectronics

Description: Arm®-Cortex®-M4 32b MCU+FPU, 125 DMIPS, 128KB Flash, 32KB RAM, 9 TIMs, 1 ADC, 1 DAC, 1 LPTIM, 9 comm. interfaces

Download STM32F410CBT6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

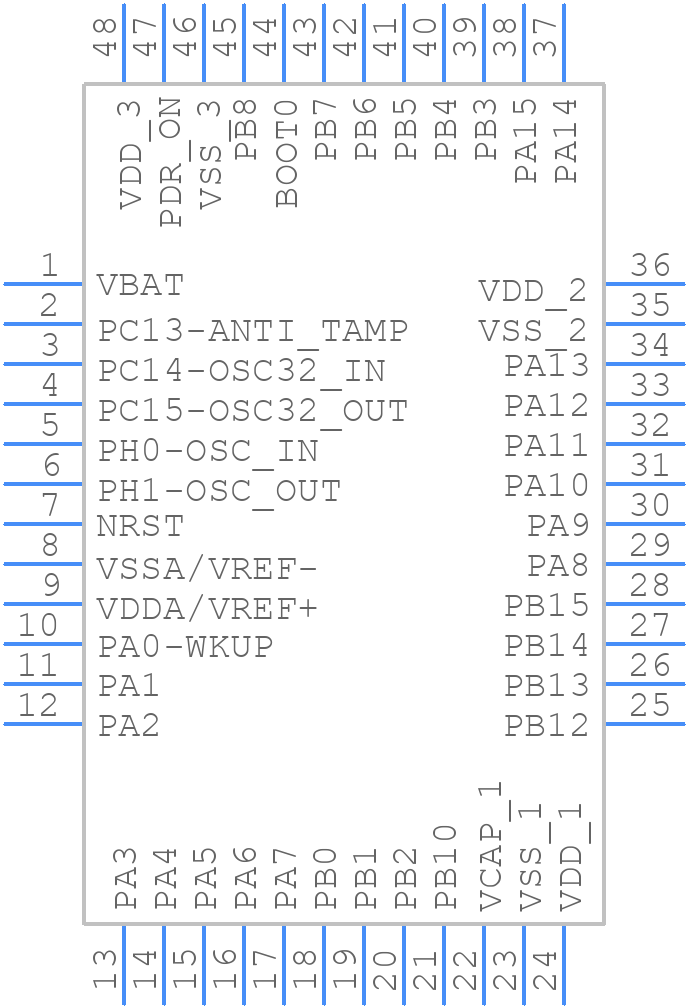

STM32F410CBT6 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM32F410CBT6 - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP - 48 pins
click to zoom
3D Models
STM32F410CBT6 - STMicroelectronics - 3D model - Quad Flat Packages - LQFP - 48 pins
click to zoom

STM32F410CBT6 Details

  • Manufacturer Part Number:

    STM32F410CBT6

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer Package Code:

    LQFP 48 7x7x1.4

  • Country Of Origin:

    Mainland China, Philippines, Taiwan

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Has ADC:

    YES

  • Bit Size:

    32

  • Clock Frequency-Max:

    26 MHz

  • DMA Channels:

    YES

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    36

  • Number of Terminals:

    48

  • PWM Channels:

    YES

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Speed:

    100 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

STM32F410CBT6 Frequently Asked Questions (FAQs)

  • The maximum clock frequency of the STM32F410CBT6 is 100 MHz.
  • The clock settings for the STM32F410CBT6 can be configured using the Clock Configuration Tool (CCT) software provided by STMicroelectronics or by manually configuring the registers using the STM32CubeMX software.
  • The BOOT0 and BOOT1 pins are used to select the boot mode of the microcontroller. BOOT0 is used to select between the internal flash and the system memory, while BOOT1 is used to select between the internal flash and an external memory.
  • The DMA controller on the STM32F410CBT6 can be used to transfer data between peripherals and memory without CPU intervention. This can be done by configuring the DMA channels, setting the transfer parameters, and enabling the DMA transfer.
  • The power consumption of the STM32F410CBT6 depends on the operating frequency, voltage, and peripherals used. According to the datasheet, the typical power consumption is around 350 μA/MHz at 100 MHz and 1.8 V.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM32F410CBT6 Overview

Use the download button to access the STM32F410CBT6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM32, or try a keyword search, such as Microcontrollers
