STM32F410CBU3TR - STMicroelectronics

Description: STM32 Dynamic Efficiency MCU with BAM, High-performance and DSP with FPU, Arm Cortex-M4 MCU with 128 Kbytes of Flash memory, 100 MHz CPU, Art Accelerator

Download STM32F410CBU3TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

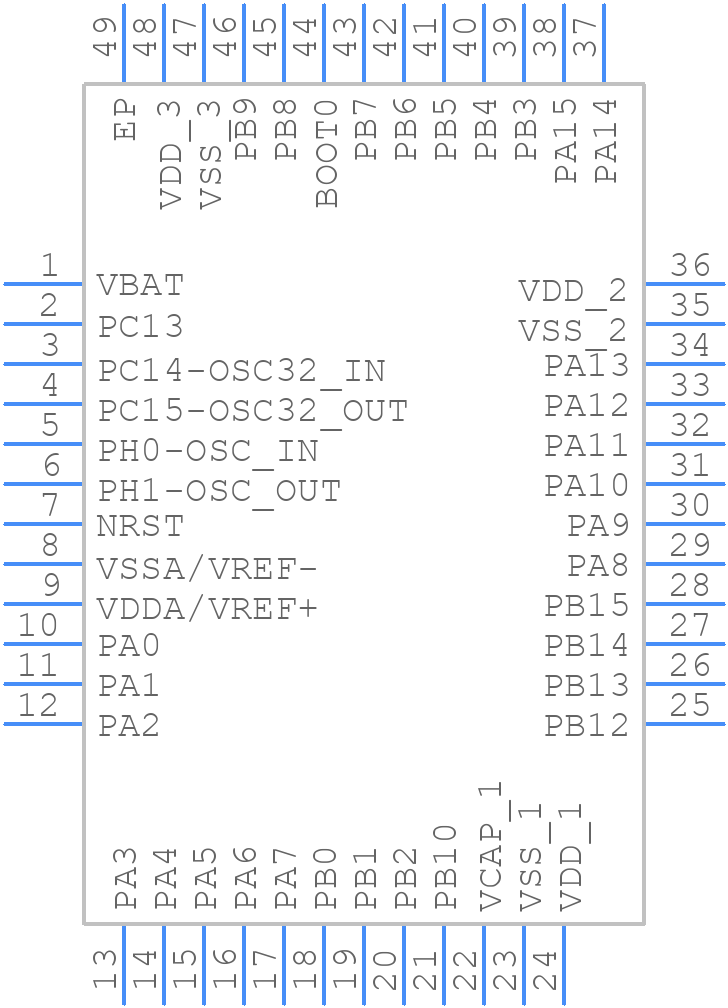

STM32F410CBU3TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM32F410CBU3TR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UFQFPN48 - 48-lead, 7x7 mm, 0.5 mm _2020
click to zoom
3D Models
STM32F410CBU3TR - STMicroelectronics - 3D model - Quad Flat No-Lead - UFQFPN48 - 48-lead, 7x7 mm, 0.5 mm _2020
click to zoom

STM32F410CBU3TR Details

  • Manufacturer Part Number:

    STM32F410CBU3TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Has ADC:

    YES

  • Bit Size:

    32

  • Clock Frequency-Max:

    26 MHz

  • DMA Channels:

    YES

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    36

  • Number of Terminals:

    48

  • PWM Channels:

    YES

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Speed:

    100 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin (Sn) - immersion

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

STM32F410CBU3TR Frequently Asked Questions (FAQs)

  • The maximum clock frequency of the STM32F410CBU3TR is 100 MHz, but it can be overclocked to 120 MHz with some limitations.
  • The clock settings for the STM32F410CBU3TR can be configured using the Clock Configuration Tool (CCT) in the STM32CubeMX software or by writing code to configure the RCC (Reset and Clock Control) registers.
  • The main difference between the STM32F410CBU3TR and the STM32F410CBU6TR is the package type. The STM32F410CBU3TR comes in a 48-pin LQFP package, while the STM32F410CBU6TR comes in a 64-pin LQFP package. The latter has more GPIO pins and some additional peripherals.
  • Yes, the STM32F410CBU3TR can be used with an external crystal oscillator. The microcontroller has a built-in PLL (Phase-Locked Loop) that can be used to multiply the frequency of the external crystal oscillator to generate the system clock.
  • The STM32F410CBU3TR can be programmed using a variety of tools, including the ST-Link/V2 debugger/programmer, the STM32CubeProgrammer software, or third-party tools like Keil µVision or IAR Embedded Workbench.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM32F410CBU3TR Overview

Use the download button to access the STM32F410CBU3TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM32, or try a keyword search, such as Microcontrollers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
