STM32F411CCU7TR - STMicroelectronics

Description: High-performance access line, Arm Cortex-M4 core with DSP and FPU, 256 Kbytes of Flash memory, 100 MHz CPU, ART Accelerator

Download STM32F411CCU7TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

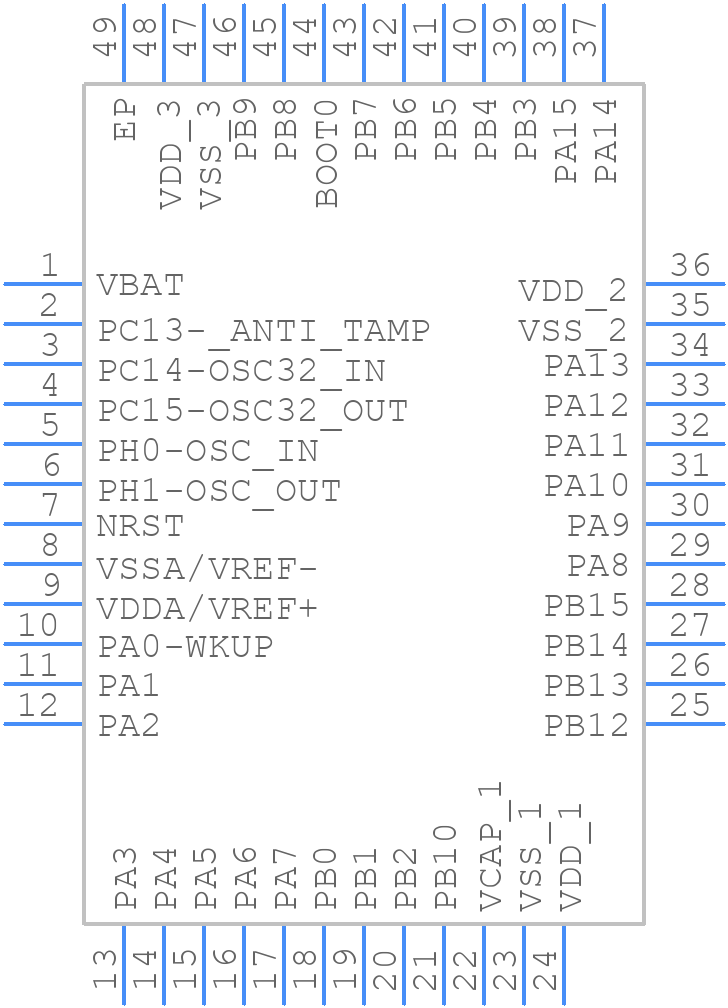

STM32F411CCU7TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM32F411CCU7TR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UFQFPN48-3
click to zoom
3D Models
STM32F411CCU7TR - STMicroelectronics - 3D model - Quad Flat No-Lead - UFQFPN48-3
click to zoom

STM32F411CCU7TR Details

  • Manufacturer Part Number:

    STM32F411CCU7TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Malaysia, Taiwan

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

STM32F411CCU7TR Frequently Asked Questions (FAQs)

  • The maximum clock frequency of the STM32F411CCU7TR is 100 MHz, but it can be overclocked to 120 MHz with some limitations.
  • The clock settings for the STM32F411CCU7TR can be configured using the Clock Configuration Tool (CCT) in the STM32CubeMX software or by manually writing code to configure the RCC (Reset and Clock Control) registers.
  • The main difference between the STM32F411CCU6TR and STM32F411CCU7TR is the package type. The STM32F411CCU6TR comes in a LQFP48 package, while the STM32F411CCU7TR comes in a LQFP64 package, which provides more pins for peripherals and GPIOs.
  • No, the STM32F411CCU7TR is not 5V tolerant and should only be powered with a 3.3V power supply. Applying 5V to the device can cause damage or permanent failure.
  • The STM32F411CCU7TR can be programmed using a variety of methods, including the ST-LINK/V2 debugger, the STM32CubeProgrammer software, or third-party programming tools such as Keil µVision or IAR Embedded Workbench.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM32F411CCU7TR Overview

Use the download button to access the STM32F411CCU7TR schematic symbol, PCB footprint, and 3D model.
