STM32F469IIT6 - STMicroelectronics

Description: Arm®Cortex®-M4 32b MCU+FPU, 225DMIPS, up to 2MB Flash/384+4KB RAM, USB OTG HS/FS, Ethernet, FMC, dual Quad-SPI, Graphical accelerator, Camera IF, LCD-TFT & MIPI DSI

Download STM32F469IIT6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STM32F469IIT6 - STMicroelectronics - PCB symbol
click to zoom

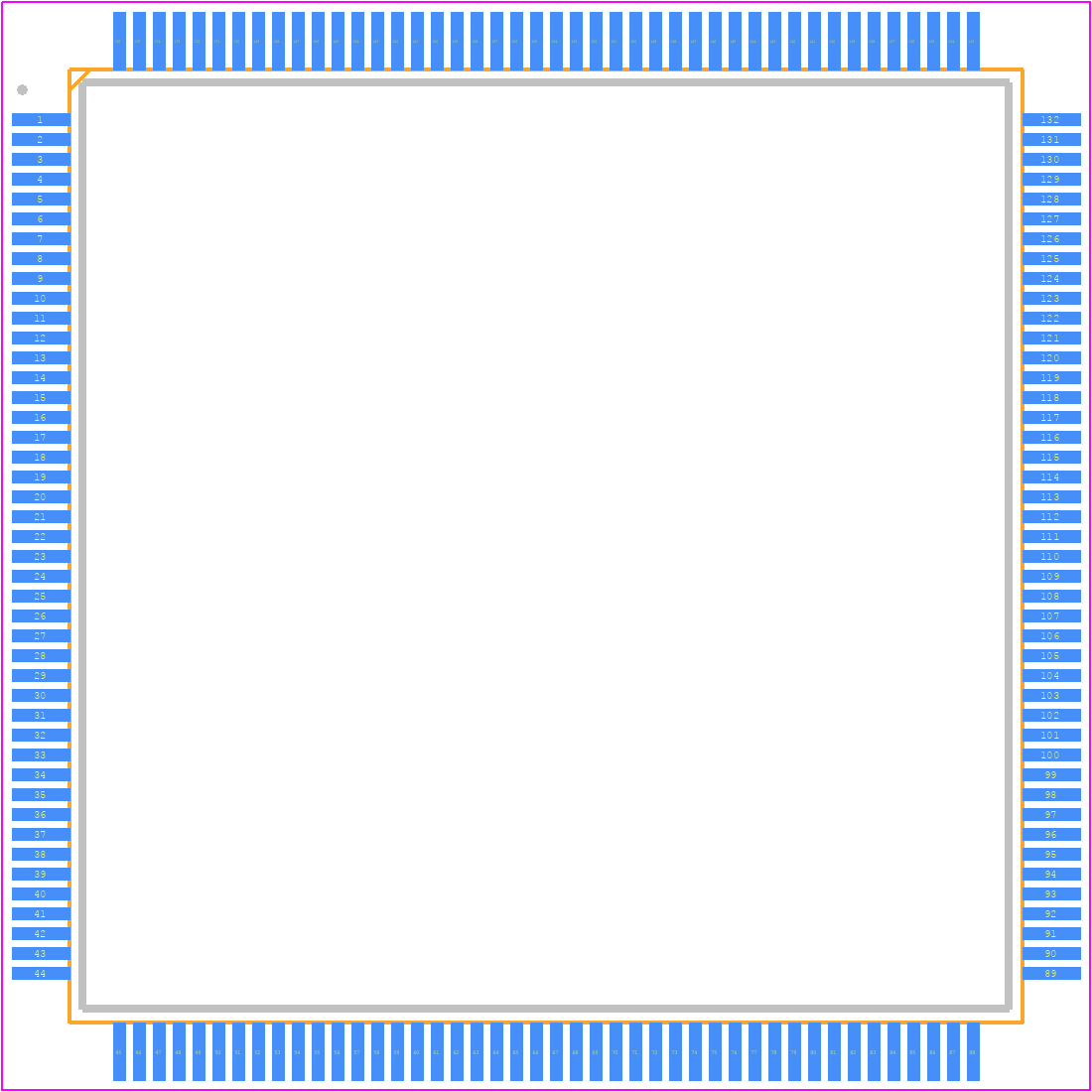

PCB Footprints
STM32F469IIT6 - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - 176-Pin LQFP
click to zoom
3D Models
STM32F469IIT6 - STMicroelectronics - 3D model - Quad Flat Packages - 176-Pin LQFP
click to zoom

STM32F469IIT6 Details

  • Manufacturer Part Number:

    STM32F469IIT6

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer Package Code:

    LQFP 176 24x24x1.4

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    15 Weeks

  • Date Of Intro:

    2017-08-22

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Has ADC:

    YES

  • Address Bus Width:

    24

  • Bit Size:

    32

  • Clock Frequency-Max:

    26 MHz

  • DMA Channels:

    YES

  • External Data Bus Width:

    32

  • JESD-609 Code:

    e3

  • Length:

    24 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    131

  • Number of Terminals:

    176

  • PWM Channels:

    YES

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Speed:

    180 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    24 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

STM32F469IIT6 Frequently Asked Questions (FAQs)

  • The maximum clock frequency of the STM32F469IIT6 is 180 MHz.
  • You can configure the clock settings using the Clock Configuration Tool (CCT) in STM32CubeMX or by writing code to configure the RCC (Reset and Clock Control) registers.
  • The BOOT0 and BOOT1 pins are used to select the boot mode of the microcontroller. BOOT0 selects between the internal flash and system memory, while BOOT1 selects between the internal flash and an external memory device.
  • You can use the DMA controller to transfer data between peripherals and memory without CPU intervention. Configure the DMA channels, set the transfer parameters, and enable the DMA controller to perform the transfer.
  • The main difference is the package type. The STM32F469IIT6 comes in a LQFP144 package, while the STM32F469ZIT6 comes in a LQFP176 package. The ZIT6 has more pins and more peripherals available.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM32F469IIT6 Overview

Use the download button to access the STM32F469IIT6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM32, or try a keyword search, such as Microcontrollers
