STM32F469NEH6 - STMicroelectronics

Description: Arm®Cortex®-M4 32b MCU+FPU, 225DMIPS, up to 2MB Flash/384+4KB RAM, USB OTG HS/FS, Ethernet, FMC, dual Quad-SPI, Graphical accelerator, Camera IF, LCD-TFT & MIPI DSI

Download STM32F469NEH6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STM32F469NEH6 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

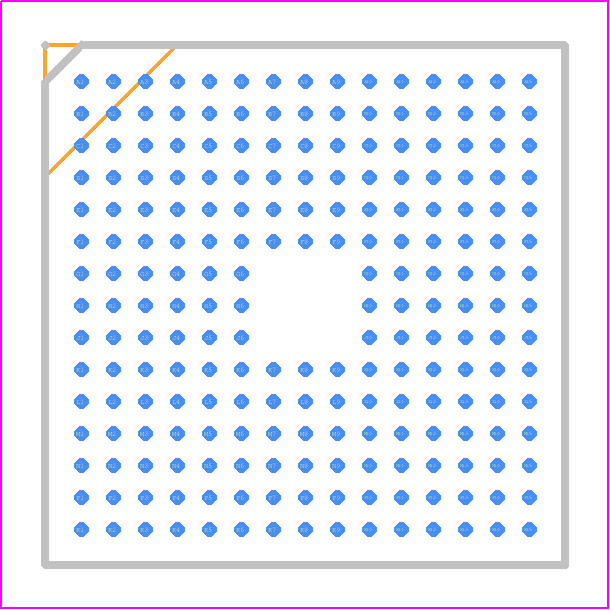

STM32F469NEH6 - STMicroelectronics PCB footprint - BGA - BGA - TFBGA216, 13 x 13 x 0.8
click to zoom
3D Models
STM32F469NEH6 - STMicroelectronics - 3D model - BGA - TFBGA216, 13 x 13 x 0.8
click to zoom

STM32F469NEH6 Details

  • Manufacturer Part Number:

    STM32F469NEH6

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer Package Code:

    TFBGA 13X13X1.2 216L P 0.8 MM

  • Country Of Origin:

    Malaysia, Philippines

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    15 Weeks

  • Date Of Intro:

    2017-08-22

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Has ADC:

    YES

  • Address Bus Width:

    24

  • Bit Size:

    32

  • Clock Frequency-Max:

    26 MHz

  • DMA Channels:

    YES

  • External Data Bus Width:

    32

  • Length:

    13 mm

  • Number of I/O Lines:

    161

  • Number of Terminals:

    216

  • PWM Channels:

    YES

  • Package Code:

    TFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Speed:

    180 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    13 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

STM32F469NEH6 Frequently Asked Questions (FAQs)

  • The maximum clock frequency of the STM32F469NEH6 is 180 MHz.
  • The clock settings for the STM32F469NEH6 can be configured using the Clock Configuration Tool (CCT) software provided by STMicroelectronics, or by manually configuring the clock registers using the STM32CubeF4 firmware package.
  • The STM32F469NEH6 has 2MB of Flash memory and 384KB of RAM.
  • The DMA controller on the STM32F469NEH6 can be used to transfer data between peripherals and memory without CPU intervention. The DMA controller is configured using the DMA_CCRx registers, and the DMA request is generated by the peripheral.
  • The BOOT0 and BOOT1 pins on the STM32F469NEH6 are used to select the boot mode of the device. BOOT0 is used to select between the internal Flash memory and an external memory, while BOOT1 is used to select the boot mode (e.g. boot from Flash, SRAM, or external memory).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM32F469NEH6 Overview

Use the download button to access the STM32F469NEH6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM32, or try a keyword search, such as Microcontrollers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
