STM32F756IGT6 - STMicroelectronics

Description: ARM®-based Cortex®-M7 32b MCU+FPU, 462DMIPS, up to 1MB Flash/320+16+ 4KB RAM, crypto, USB OTG HS/FS, ethernet, 18 TIMs, 3 ADCs, 25 com itf, cam & LCD

Download STM32F756IGT6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STM32F756IGT6 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

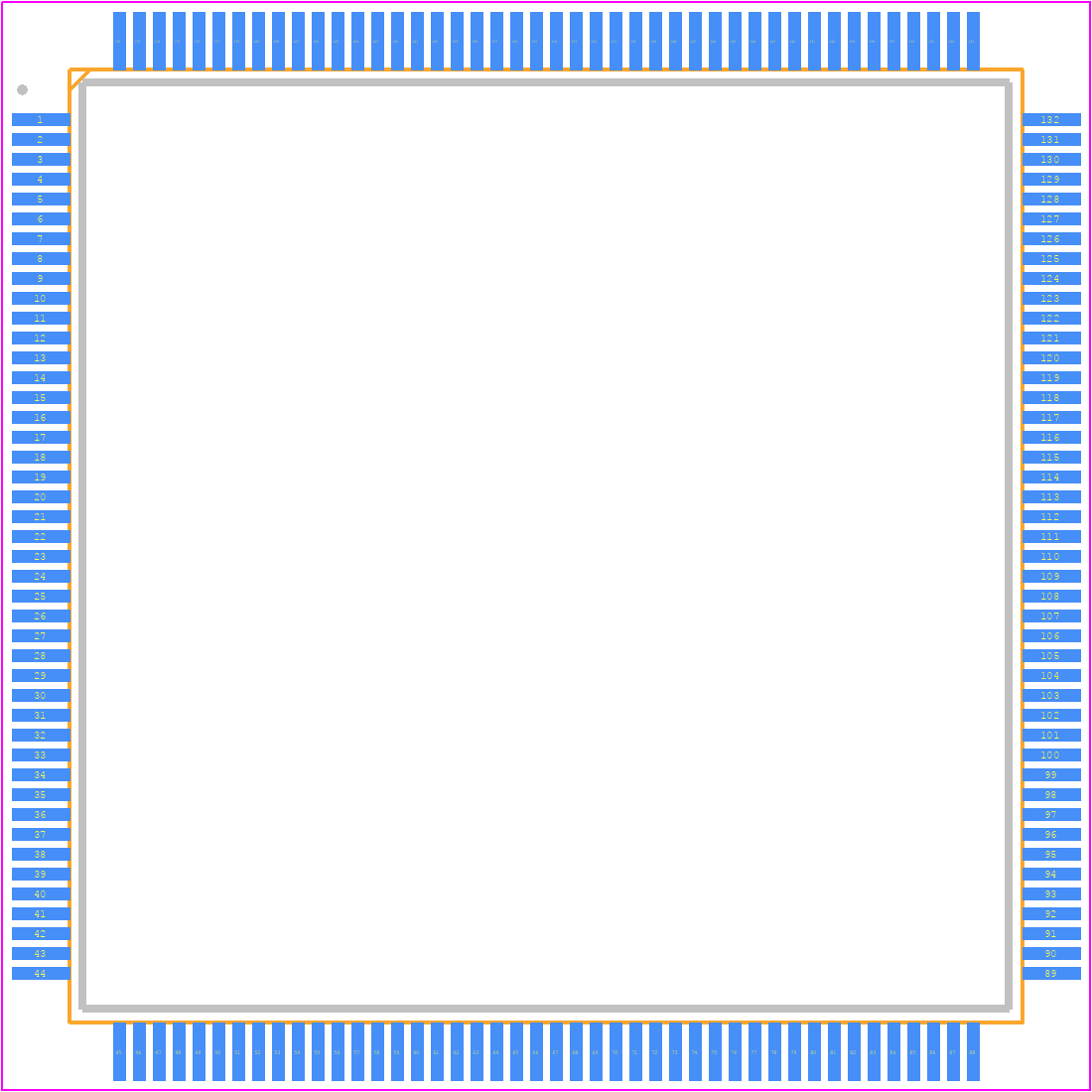

STM32F756IGT6 - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP176 24 x 24 x 1.4
click to zoom
3D Models
STM32F756IGT6 - STMicroelectronics - 3D model - Quad Flat Packages - LQFP176 24 x 24 x 1.4
click to zoom

STM32F756IGT6 Details

  • Manufacturer Part Number:

    STM32F756IGT6

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Has ADC:

    YES

  • Address Bus Width:

    26

  • Bit Size:

    32

  • Clock Frequency-Max:

    26 MHz

  • DMA Channels:

    YES

  • External Data Bus Width:

    32

  • JESD-609 Code:

    e3

  • Length:

    24 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    140

  • Number of Terminals:

    176

  • PWM Channels:

    YES

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Speed:

    216 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    24 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

STM32F756IGT6 Frequently Asked Questions (FAQs)

  • The maximum clock frequency of the STM32F756IGT6 is 216 MHz, but it can be overclocked to 240 MHz with some limitations.
  • The clock tree in the STM32F756IGT6 can be configured using the Clock Configuration Tool (CCT) in STM32CubeMX, which is a graphical software configuration tool.
  • The main difference between the STM32F756IGT6 and the STM32F746IGT6 is that the STM32F756IGT6 has a higher maximum clock frequency (216 MHz vs 180 MHz) and more SRAM (320 KB vs 256 KB).
  • The DMA controller in the STM32F756IGT6 can be used to transfer data between peripherals and memory without CPU intervention. It can be configured using the DMA_CCRx registers and the DMA_SxCR registers.
  • The Boot pins (BOOT0 and BOOT1) on the STM32F756IGT6 are used to select the boot mode of the device. They can be used to select between booting from Flash memory, SRAM, or an external memory interface.
