STM32F756VGH6 - STMicroelectronics

Description: ARM®-based Cortex®-M7 32b MCU+FPU, 462DMIPS, up to 1MB Flash/320+16+ 4KB RAM, crypto, USB OTG HS/FS, ethernet, 18 TIMs, 3 ADCs, 25 com itf, cam & LCD

Download STM32F756VGH6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STM32F756VGH6 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

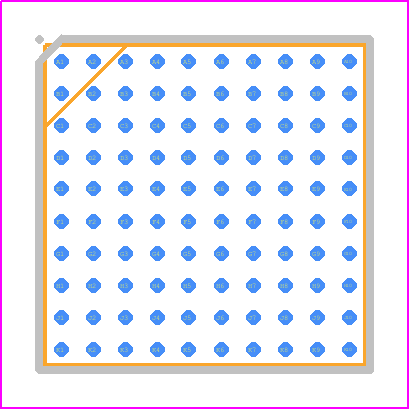

STM32F756VGH6 - STMicroelectronics PCB footprint - BGA - BGA - TFBGA100, 8 x 8 x 0.8 mm
click to zoom
3D Models
STM32F756VGH6 - STMicroelectronics - 3D model - BGA - TFBGA100, 8 x 8 x 0.8 mm
click to zoom

STM32F756VGH6 Details

  • Manufacturer Part Number:

    STM32F756VGH6

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer Package Code:

    TFBGA 8X8 100L F10X10 0.8 MM PIT

  • Country Of Origin:

    Malaysia, Philippines

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Has ADC:

    YES

  • Address Bus Width:

    8

  • Bit Size:

    32

  • Clock Frequency-Max:

    26 MHz

  • DMA Channels:

    YES

  • External Data Bus Width:

    16

  • Length:

    8 mm

  • Number of I/O Lines:

    82

  • Number of Terminals:

    100

  • PWM Channels:

    YES

  • Package Code:

    TFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Speed:

    216 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    8 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

STM32F756VGH6 Frequently Asked Questions (FAQs)

  • The internal oscillator (HSI) can operate up to 64 MHz, but the recommended frequency range is 4-48 MHz for optimal performance and power consumption.
  • To achieve the highest clock speed, configure the PLL to multiply the HSE clock (external crystal oscillator) by 432 to reach 216 MHz, then divide it by 2 to get 108 MHz for the CPU clock.
  • The STM32F756VGH6 has 1 MB of Flash memory and 320 KB of SRAM, but only 256 KB of SRAM is accessible by the CPU. The remaining 64 KB is reserved for the Ethernet peripheral.
  • The Ethernet peripheral is connected to the RMII interface and requires an external PHY (Physical Layer) chip. Configure the Ethernet peripheral using the STM32CubeF7 HAL library and use the RMII interface to connect to the PHY chip.
  • The VBAT pin is used to power the Real-Time Clock (RTC) and backup registers when the main power supply (VDD) is turned off. It requires a battery or a supercapacitor to maintain the RTC and backup registers.
