STM32F765VGH6TR - STMicroelectronics

Description: ARM Microcontrollers - MCU High-performance and DSP with FPU, ARM Cortex-M7 MCU with 1 Mbyte Flash, 216 MHz CPU, Art Accelerator, L1 cache, SDRAM, DFSDM

Download STM32F765VGH6TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STM32F765VGH6TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

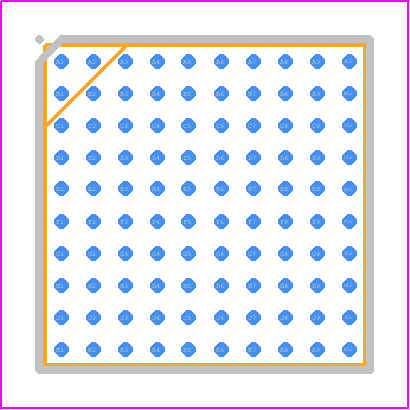

STM32F765VGH6TR - STMicroelectronics PCB footprint - BGA - BGA - TFBGA100
click to zoom
3D Models
STM32F765VGH6TR - STMicroelectronics - 3D model - BGA - TFBGA100
click to zoom

STM32F765VGH6TR Details

  • Manufacturer Part Number:

    STM32F765VGH6TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, Philippines

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    15 Weeks

  • Date Of Intro:

    2019-09-20

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Moisture Sensitivity Level:

    1

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

STM32F765VGH6TR Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the STM32F765VGH6TR is -40°C to 105°C (industrial grade) and -40°C to 125°C (extended grade).
  • The clock speed of the STM32F765VGH6TR can be configured using the Clock Control Register (RCC_CR) and the PLL Configuration Register (RCC_PLLCFGR). The clock speed can be set to 16 MHz, 32 MHz, 64 MHz, or 216 MHz.
  • The STM32F765VGH6TR has 1 MB of Flash memory and 512 KB of SRAM.
  • The DMA controller on the STM32F765VGH6TR can be used to transfer data between peripherals and memory without CPU intervention. The DMA controller is configured using the DMA_SxCR (stream x configuration register) and DMA_SxNDTR (stream x number of data register).
  • The Boot Mode pins (BOOT0 and BOOT1) on the STM32F765VGH6TR are used to select the boot mode of the device. The boot mode can be set to boot from Flash memory, System memory, or Serial wire debug (SWD) interface.
