STM32F767BGT6 - STMicroelectronics

Description: Arm® Cortex®-M7 32b MCU+FPU, 462 DMIPS, up to 2 MB flash, 512+16+4 KB RAM, USB OTG HS/FS, 28 com. int., LCD, DSI

Download STM32F767BGT6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STM32F767BGT6 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

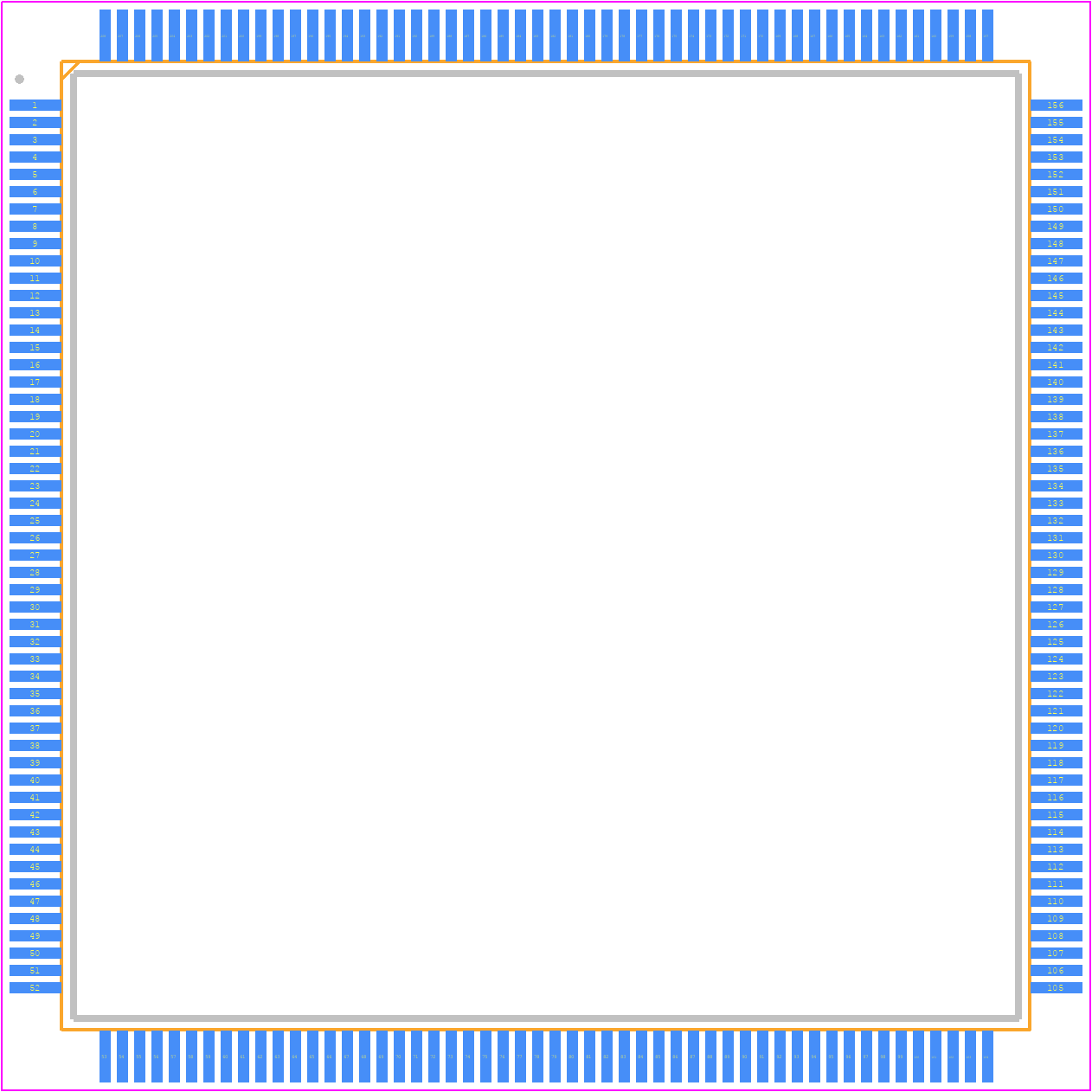

STM32F767BGT6 - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP-208
click to zoom
3D Models
STM32F767BGT6 - STMicroelectronics - 3D model - Quad Flat Packages - LQFP-208
click to zoom

STM32F767BGT6 Details

  • Manufacturer Part Number:

    STM32F767BGT6

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer Package Code:

    LQFP 208 28x28x1.4

  • Country Of Origin:

    Mainland China, Malaysia, Taiwan

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Has ADC:

    YES

  • Bit Size:

    32

  • Clock Frequency-Max:

    26 MHz

  • DMA Channels:

    YES

  • JESD-609 Code:

    e3

  • Length:

    28 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    159

  • Number of Terminals:

    208

  • PWM Channels:

    YES

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Speed:

    216 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    28 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

STM32F767BGT6 Frequently Asked Questions (FAQs)

  • The maximum clock frequency of the STM32F767BGT6 is 216 MHz, but it can be overclocked to 240 MHz with some limitations.
  • The clock tree in the STM32F767BGT6 can be configured using the Clock Configuration Tool (CCT) in STM32CubeMX, which generates the necessary code for the clock setup.
  • The VBAT pin is used to supply power to the real-time clock (RTC) and the backup registers when the device is in power-down mode or when the main power supply is turned off.
  • The DMA controller in the STM32F767BGT6 can be used to transfer data between peripherals and memory without CPU intervention. It requires configuring the DMA channels, setting up the transfer parameters, and enabling the DMA interrupts.
  • The main difference between the STM32F767BGT6 and the STM32F767ZGT6 is the package type. The STM32F767BGT6 comes in a LQFP144 package, while the STM32F767ZGT6 comes in a LQFP176 package, with more pins available for peripherals.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM32F767BGT6 Overview

Use the download button to access the STM32F767BGT6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM32, or try a keyword search, such as Microcontrollers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
