STM32F767VGH6 - STMicroelectronics

Description: High-performance and DSP with FPU, Arm Cortex-M7 MCU with 1 Mbyte of Flash memory, 216 MHz CPU, Art Accelerator, L1 cache, SDRAM, TFT, JPEG codec, DFSDM

Download STM32F767VGH6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STM32F767VGH6 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

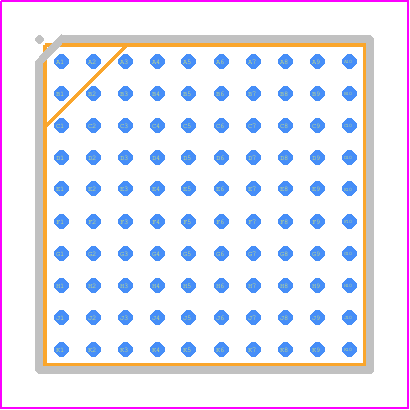

STM32F767VGH6 - STMicroelectronics PCB footprint - BGA - BGA - TFBGA 100 8x8x1.2 P 0.8 m
click to zoom
3D Models
STM32F767VGH6 - STMicroelectronics - 3D model - BGA - TFBGA 100 8x8x1.2 P 0.8 m
click to zoom

STM32F767VGH6 Details

  • Manufacturer Part Number:

    STM32F767VGH6

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, Philippines

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Has ADC:

    YES

  • Address Bus Width:

    8

  • Bit Size:

    32

  • Clock Frequency-Max:

    50 MHz

  • DMA Channels:

    YES

  • External Data Bus Width:

    16

  • Length:

    8 mm

  • Moisture Sensitivity Level:

    1

  • Number of I/O Lines:

    82

  • Number of Terminals:

    100

  • PWM Channels:

    YES

  • Package Code:

    TFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Speed:

    216 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    8 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

STM32F767VGH6 Frequently Asked Questions (FAQs)

  • The maximum clock frequency of the STM32F767VGH6 is 216 MHz, but it can be overclocked to 240 MHz with some limitations.
  • The clock settings for the STM32F767VGH6 can be configured using the Clock Configuration Tool (CCT) in STM32CubeMX or by manually writing code to configure the RCC (Reset and Clock Control) registers.
  • The main difference between the STM32F767VGH6 and the STM32F767ZI is the package type. The STM32F767VGH6 comes in a 100-pin LQFP package, while the STM32F767ZI comes in a 144-pin LQFP package. The STM32F767ZI has more pins available for peripherals and has a larger flash memory.
  • The DMA controller on the STM32F767VGH6 can be used to transfer data between peripherals and memory without involving the CPU. This can be done by configuring the DMA channels, setting up the transfer parameters, and enabling the DMA transfer.
  • The Bootloader on the STM32F767VGH6 is a small program that runs when the device is powered on or reset. It is responsible for loading the application code from flash memory or an external source into the RAM and starting the application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM32F767VGH6 Overview

Use the download button to access the STM32F767VGH6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM32, or try a keyword search, such as Microcontrollers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
